Vehicle Exploded View - VESPA VESPA LXV 125 4T 2V NOABS E3 2006-2009 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

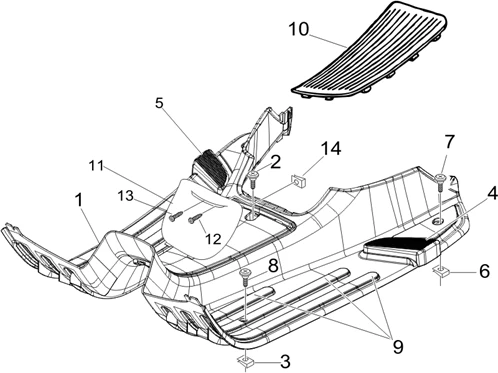

Châssis - parties plastiques - carrosseries : 02.31 PROTECTION CENTRALE - REPOSE-PIEDS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/852/Vespa_LXV_125_4T_2V_NOABS_E3_2006-2009_(EMEA)_02.31.png)
1 |
62212440VG - TAPIS CENTRAL More informationQuantity required : 1 |
||||||
|
1 |
62212440M4 - TAPIS CENTRAL More informationQuantity required : 1 |
||||||
|
1 |
62212440EP - TAPIS CENTRAL More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
2 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/5/7/img/73357.jpg)
2 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM178601 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/1/9/0/img/95190.jpg)
3 |
CM017406 - PLAQUETTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/2/8/6/img/84286.jpg)
4 |
LEFT PASSENGER FOOTREST "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622125 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/2/8/7/img/84287.jpg)
5 |
RIGHT PASSENGER FOOTREST "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622126 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/0/7/img/66107.jpg)
7 |
SCREW - (6X30) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -271891 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/8/img/73368.jpg)
7 |
CM179303 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
8 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/6/7/3/img/89673.jpg)
9 |
65712645 - PROFIL MARCHE PIED (KIT) More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/0/2/2/0/img/80220.jpg)
10 |
CENTRAL FOOTREST MAT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -57345R More informationQuantity required : 1 |
||||||
|
11 |
62213600M4 - ABATTANT AVT More informationQuantity required : 0 |
||||||
|
11 |
62213650VG - ABATTANT AVT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/5/0/8/img/84508.jpg)
11 |
6221366 - ABATTANT AVT BRUT More informationQuantity required : 1 |
||||||
|
11 |
62213660EP - ABATTANT AVT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/4/img/72924.jpg)
12 |
NUT / PLATE FOR FAIRING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM017408 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
12 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190 More informationQuantity required : 1 |
||||||
|
14 |
SCREW - 4,2X13 FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO THE RANGE PIAGGIO -259349 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
14 |
015911 - VIS S01591100 More informationQuantity required : 1 |
