Vehicle Exploded View - VESPA VESPA LXV 50 2T 2006-2009
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

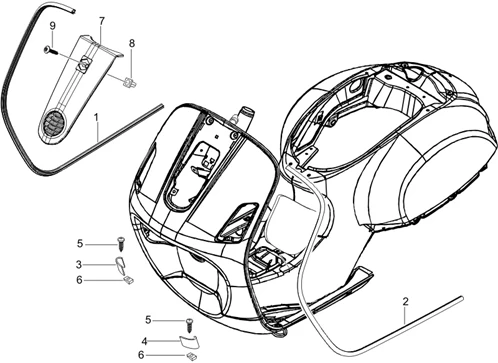

Châssis - parties plastiques - carrosseries : 02.26 TABLIER AVANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/720/Vespa_LXV_50_2T_2006-2009_02.26.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/5/7/0/img/84570.jpg)
1 |
FRONT FAIRING EDGE-RIGHT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622188- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/4/5/6/9/img/84569.jpg)
2 |
FRONT FAIRING EDGE-LEFT "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -622187 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/9/1/img/78091.jpg)
3 |
CLIP FOR ROD OF RIGHT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/8/0/9/0/img/78090.jpg)
4 |
CLIP FOR ROD OF LEFT FRONT FAIRING "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S -299965- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/4/img/63854.jpg)
5 |
SCREW - -008432 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/1/img/72921.jpg)
6 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM017403- More informationQuantity required : 2 |
|||||||||
7 |
|
|||||||||
|
7 |
STEERING COVER "PIAGGIO GENUINE PART" 50-125 VESPA LX RAW TO BE PAINT -655964- More informationQuantity required : 1 |
|||||||||
|
7 |
65596400VG - COUVERCLE More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/3/0/9/img/109309.jpg)
7 |
STEERING COVER "PIAGGIO GENUINE PART" VESPA 50-125 LXV GREY 780/A -65596470EP More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/3/2/img/65832.jpg)
8 |
EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/6/8/img/66068.jpg)
9 |
SCREW - 20 MM "PIAGGIO GENUINE PART" COMMON TO THE RANGE -267958- More informationQuantity required : 1 |
|||||||||
