Vehicle Exploded View - VESPA VESPA LXV 50 2T Navy 2007-2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

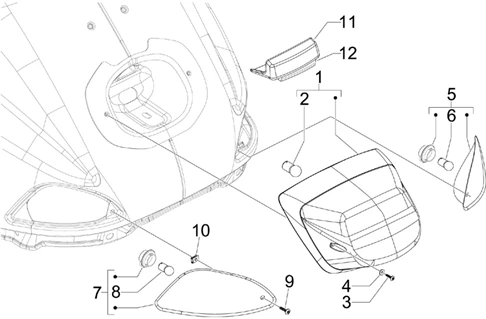

Installation électrique : 06.04 ECLAIRAGES ARRIÈRE - CLIGNOTANTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/719/Vespa_LXV_50_2T_Navy_2007-2008_06.04.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/5/7/2/1/img/85721.jpg)
1 |
639281 - FEU AR CPLT More informationQuantity required : 1 |
||||||
|
1 |
639281 - FEU AR CPLT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
2 |
LIGHT BULB FOR TAILLIGHT 12V-5/21W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -129953 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
3 |
015996 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/1/img/65361.jpg)
4 |
013769 - RONDELLE S01376900 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/3/4/img/81634.jpg)
5 |
FLASHER-REAR-RIGHT "PIAGGIO GENUINE PART" 50-125 VESPA LX -58177R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/6/3/1/img/81631.jpg)
5 |
FLASHER-REAR-LEFT "PIAGGIO GENUINE PART" 50-125 VESPA LX -58176R5 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/9/8/img/67298.jpg)
6 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
|
7 |
FLASHER-REAR-LEFT "PIAGGIO GENUINE PART" 50-125 VESPA LX -58176R5 More informationQuantity required : 1 |
||||||
|
7 |
FLASHER-REAR-RIGHT "PIAGGIO GENUINE PART" 50-125 VESPA LX -58177R5 More informationQuantity required : 1 |
||||||
|
8 |
LIGHT BULB 12V-10W "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -584332 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/5/0/img/63850.jpg)
9 |
SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -008372 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/3/img/72923.jpg)
10 |
CM017405 - PLAQUETTE More informationQuantity required : 2 |
||||||
11 |
|
||||||
|
11 |
63881040DE - COUVERCLE FEU AR More informationQuantity required : 1 |
||||||
|
12 |
639335 - FEU AR More informationQuantity required : 1 |
