Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T-3V NOABS E4 2017-2018 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

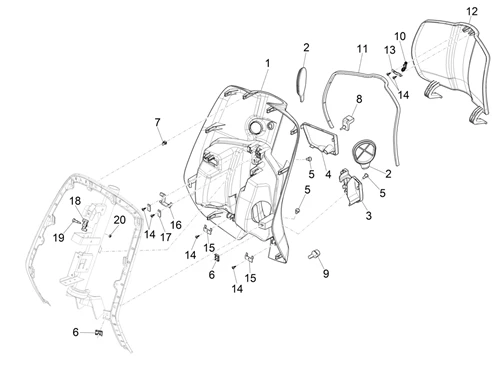

Châssis - parties plastiques - carrosseries : 02.30 COFFRE AVANT - CONTRE-TABLIER
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/800/Vespa_Primavera_50_4T-3V_NOABS_E4_2017-2018_(EMEA)_02.30.png)
1 |
1B003620000DY - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
1B003620000S8 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
1B003620000Q9 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
1B003620000TE - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
1B003620000ML - COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/2/1/img/91321.jpg)
1 |
COUNTER SHIELD "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA 2013> BLACK 98/A -1B003620000XN2- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/6/5/6/img/142656.jpg)
1 |
COUNTER SHIELD "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA 2012>, VESPA SPRINT 2014> - RAW TO BE PAINTED -1B003620 More informationQuantity required : 1 |
||||||
|
1 |
1B003620000T9 - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
1B003620000T8 - COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/9/9/8/img/139998.jpg)
1 |
1B003620000R7 - COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/9/9/1/img/139991.jpg)
1 |
COUNTER SHIELD "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA 2013> WHITE 544 -1B003620000BR- More informationQuantity required : 1 |
||||||
|
1 |
1B003620000YR5 - COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/3/0/7/4/img/153074.jpg)
1 |
1B003620000DK - COFFRE More informationQuantity required : 1 |
||||||
|
1 |
1B003620000MD - COFFRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/9/6/7/6/img/89676.jpg)
2 |
657135 - BOUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/9/7/4/img/139974.jpg)
3 |
1B0035230000C - POCKET GAUCHE DE LA POITRINE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/0/4/9/img/92049.jpg)
4 |
675689000C - POCHE POITRINE DROITE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/5/img/73365.jpg)
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202 More informationQuantity required : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485- More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/4/0/4/img/73404.jpg)
7 |
CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859 More informationQuantity required : 8 |
||||||
|
8 |
1B000487 - COUVERCLE RESERVOIR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/1/6/img/67216.jpg)
9 |
COVER FOR DASHBOARD "PIAGGIO GENUINE PART" COMMON FOR ALL MAXISCOOTERS -581412- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/2/img/66002.jpg)
10 |
DOOR CLOSING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -252420 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/0/4/2/img/95042.jpg)
11 |
BOOT DOOR GASKET "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -CM006314 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/3/6/7/img/177367.jpg)
12 |
1B006824000R7 - FRONT LUGGAGE COMPARTEMENT DOOR More informationQuantity required : 1 |
||||||
|
12 |
67361800DY - ABATTANT More informationQuantity required : 1 |
||||||
|
12 |
67361800S8 - ABATTANT More informationQuantity required : 1 |
||||||
|
12 |
67361800Q9 - ABATTANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/2/2/img/91322.jpg)
12 |
673618 - PORTE COFFRE A GANTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/3/3/4/img/91334.jpg)
12 |
67361800XN2 - PORTE COFFRE A GANTS More informationQuantity required : 1 |
||||||
|
12 |
67361800T9 - PORTE COFFRE A GANTS More informationQuantity required : 1 |
||||||
|
12 |
67361800T8 - PORTE COFFRE A GANTS More informationQuantity required : 1 |
||||||
|
12 |
1B006824000R7 - FRONT LUGGAGE COMPARTEMENT DOOR More informationQuantity required : 1 |
||||||
|
12 |
67361800BR - PORTE COFFRE A GANTS More informationQuantity required : 1 |
||||||
|
12 |
67361800YR5 - ABATTANT More informationQuantity required : 1 |
||||||
|
12 |
67361800MD - PORTE COFFRE A GANTS More informationQuantity required : 1 |
||||||
|
12 |
67361800TE - PORTE COFFRE A GANTS More informationQuantity required : 1 |
||||||
|
12 |
67361800ML - PORTE COFFRE A GANTS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/0/0/4/img/140004.jpg)
13 |
GLOVE BOX LOCK SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -1B003658- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
14 |
SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498- More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/2/2/img/66022.jpg)
15 |
DOOR FIXING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -257614- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/0/0/0/img/92000.jpg)
16 |
675489 - LEVIER SERRURE PORTE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/2/0/0/1/img/92001.jpg)
17 |
TRAPDOOR PLATE "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -675490 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/1/9/9/9/img/91999.jpg)
18 |
GLOVE BOX LEVER "PIAGGIO GENUINE PART" VESPA 50-125 PRIMAVERA, SPRINT -675478- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/1/4/img/66314.jpg)
19 |
299972 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/6/2/img/67162.jpg)
20 |
577620 - ECROU More informationQuantity required : 1 |
