Vehicle Exploded View - VESPA VESPA PRIMAVERA 50 4T-4V 2013-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

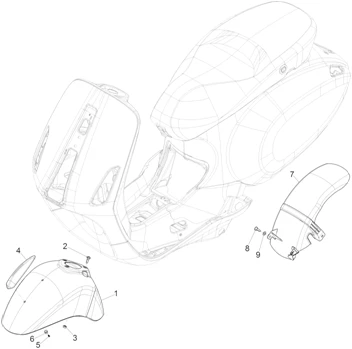

Châssis - parties plastiques - carrosseries : 02.33 LOGEMENT ROUE - GARDE BOUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/222/Vespa_Primavera_50_4T-4V_2013-2015_02.33.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/4/5/img/75745.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50 PRIMAVERA 4 STROKE 2013>2018, 125 VESPA PRIMAVERA 3V 2013>2017 BLACK 98/A -1B000947500XN2 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/3/5/img/75735.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA - RAW -1B000947 More informationQuantity required : 1 |
|||||||||
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50-125 PRIMAVERA BLUE 260/A -1B000947000AZ- More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/7/3/5/img/139735.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA WHITE 544 -1B000947500BR More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/3/8/img/75738.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50-125 PRIMAVERA 2013> BLUE 222/A -1B000947000DE More informationQuantity required : 1 |
|||||||||
|
1 |
1B000947000HH - GARDE-BOUE AVANT More informationQuantity required : 1 |
|||||||||
|
1 |
1B000947000M4 - GARDE-BOUE AVANT More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/4/0/img/75740.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50 PRIMAVERA 4 STROKE 2013>2018, 125 VESPA PRIMAVERA 3V 2013>2017 BROWN 129/A -1B000947500MD More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/7/4/3/img/75743.jpg)
1 |
FRONT MUDGUARD - "PIAGGIO GENUINE PART" 50-125 PRIMAVERA RED 894 -1B000947000R7 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/6/4/img/73364.jpg)
2 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179201 More informationQuantity required : 3 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/8/7/img/66187.jpg)
3 |
NUT - FOR EXHAUST "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC -288245 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/4/0/0/img/75400.jpg)
4 |
FRONT MUDGUARD CREST "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA -1B000042 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
5 |
SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727 More informationQuantity required : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/5/1/7/2/img/75172.jpg)
6 |
CAP FOR MUDGUARD "PIAGGIO GENUINE PART" COMMON TO ALL SCOOTERS VESPA -192598 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/7/2/7/3/img/177273.jpg)
7 |
1B005526 - RR MUDGARD ASSY More informationQuantity required : 1 |
|||||||||
|
7 |
1B012164 - COMPLETE REAR MUDGARD More informationQuantity required : 1 |
|||||||||
|
7 |
1B005526 - RR MUDGARD ASSY More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
8 |
SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485 More informationQuantity required : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/4/9/1/img/68491.jpg)
9 |
WASHER "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -709047 More informationQuantity required : 1 |
|||||||||
