Vehicle Exploded View - VESPA VESPA PX 125 2011-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

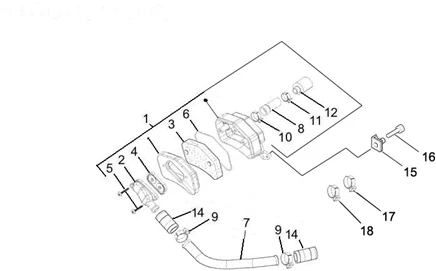

Moteur : 01.46 BOITIÎ AIR SECONDAIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/223/Vespa_PX_125_2011-2015_01.46.PNG)
1 |
8439575 - BOITE S.A.S. More informationQuantity required : 1 |
||||||
|
2 |
827209 - COUVERCLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/5/img/66715.jpg)
3 |
RECIRCULATION BOX "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 2 STROKE -486942 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/8/1/img/68681.jpg)
4 |
S.A.S. DIAPHRAGM "PIAGGIO GENUINE PART" 50 ZIP 4 STROKE, FLY 4 STROKE, LIBERTY 4 STROKE, VESPA LX 4 STROKE -82758R More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/9/img/66559.jpg)
5 |
SCREW - "PIAGGIO GENUINE PART" COMMON TO THE RANGE -478533 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/1/6/img/66716.jpg)
6 |
486943 - JOINT More informationQuantity required : 1 |
||||||
|
7 |
844165 - TUYAU More informationQuantity required : 1 |
||||||
|
8 |
843714 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/2/img/68672.jpg)
9 |
HOSE CLAMP FOR GAS RECIRCULATION BOX "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC 2 STROKE -827444- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
10 |
CM001905 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/6/img/72866.jpg)
11 |
HOSE CLAMP "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -CM001904 More informationQuantity required : 1 |
||||||
|
12 |
832620 - BOUCHON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/1/img/68671.jpg)
14 |
S.A.S. JOINING SLEEVE "PIAGGIO GENUINE PART" COMMON TO THE RANGE SCOOTER 50 CC 827443- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/9/8/img/65998.jpg)
15 |
248419 - PLAQUETTE PLASTIQUE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/2/img/66032.jpg)
16 |
SCREW - (M5X16) "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER +SCOOTER -259151- More informationQuantity required : 1 |
||||||
|
17 |
564014 - COLLIER More informationQuantity required : 1 |
||||||
|
18 |
HOSE CLAMP FOR GAS RECIRCULATION BOX "PIAGGIO GENUINE PART" COMMON FOR ALL SCOOTER 50 CC 2 STROKE -827444- More informationQuantity required : 2 |
