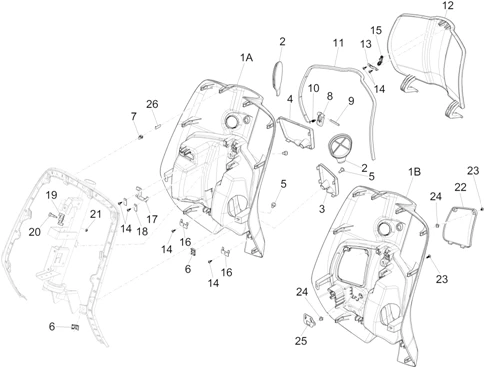

Vehicle Exploded View - VESPA VESPA SPRINT 125 4T 3V ie 2014-2015

	P2R reference	139929
	Maker reference	1B003333000BR

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT WHITE 544 -1B003333000BR

	P2R reference	75609
	Maker reference	1B000539000DQ

1B000539000DQ - COFFRE A GANTS

	P2R reference	75610
	Maker reference	1B000539000L5

1B000539000L5 - COFFRE A GANTS

	P2R reference	139937
	Maker reference	1B003333000R7

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT RED 894 -1B003333000R7

	P2R reference	142656
	Maker reference	1B003620

COUNTER SHIELD "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA 2012>, VESPA SPRINT 2014> - RAW TO BE PAINTED -1B003620

	P2R reference	139990
	Maker reference	1B00362000090

COUNTER SHIELD "PIAGGIO GENUINE PART" 50-125 VESPA SPRINT 2014> BLACK 94 -1B00362000090

	P2R reference	139991
	Maker reference	1B003620000BR

COUNTER SHIELD "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA 2013> WHITE 544 -1B003620000BR-

	P2R reference	140001
	Maker reference	1B003620500DQ

COUNTER SHIELD "PIAGGIO GENUINE PART" VESPA SPRINT 50-125 BLUE 261/A -1B003620500DQ-

	P2R reference	140003
	Maker reference	1B003620500L5

1B003620500L5 - COFFRE AVANT

	P2R reference	139998
	Maker reference	1B003620000R7

1B003620000R7 - COFFRE

	P2R reference	139927
	Maker reference	1B003333

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT RAW TO BE PAINTED -1B003333

	P2R reference	75605
	Maker reference	1B00053900090

1B00053900090 - COFFRE A GANTS

	P2R reference	139933
	Maker reference	1B003333000EZ

COUNTER SHIELD "PIAGGIO GENUINE PART" 125 VESPA PRIMAVERA, SPRINT GREY 742/B -1B003333000EZ-

	P2R reference	89676
	Maker reference	657135

657135 - BOUCHON

	P2R reference	139974
	Maker reference	1B0035230000C

1B0035230000C - POCKET GAUCHE DE LA POITRINE

	P2R reference	92049
	Maker reference	675689000C

675689000C - POCHE POITRINE DROITE

	P2R reference	73365
	Maker reference	CM179202

SCREW - "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -CM179202

	P2R reference	66009
	Maker reference	254485

SPRING PLATE (M6) "PIAGGIO GENUINE PART" COMMON FOR ALL THE RANGE -254485-

	P2R reference	73404
	Maker reference	D9004468091

CLIP "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -180859

	P2R reference	67167
	Maker reference	577861

577861 - LEVIER

	P2R reference	81222
	Maker reference	577400

577400 - AXE

	P2R reference	81221
	Maker reference	577399

577399 - RESSORT

	P2R reference	66298
	Maker reference	297275

FRONT BOOT DOOR GASKET "PIAGGIO GENUINE PART" 50-125 FLY, VESPA LX, PRIMAVERA, VESPA SPRINT, 125-250-500 X9, BEVERLY -297275-

	P2R reference	95042
	Maker reference	CM006314

BOOT DOOR GASKET "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -CM006314

	P2R reference	177367
	Maker reference	1B006824000R7

1B006824000R7 - FRONT LUGGAGE COMPARTEMENT DOOR

	P2R reference	91322
	Maker reference	673618

673618 - PORTE COFFRE A GANTS

	P2R reference	91323
	Maker reference	6736180090

6736180090 - PORTE COFFRE A GANTS

	P2R reference	91325
	Maker reference	67361800BR

67361800BR - PORTE COFFRE A GANTS

	P2R reference	91327
	Maker reference	67361800DQ

67361800DQ - PORTE COFFRE A GANTS

	P2R reference	109331
	Maker reference	67361800EZ

GLOVE COMPARTMENT COVER "PIAGGIO GENUINE PART" 50-125 PRIMAVERA GREY 742/B -67361800EZ-

	P2R reference	91328
	Maker reference	67361800L5

67361800L5 - PORTE COFFRE A GANTS

	P2R reference	177367
	Maker reference	67361800R7

1B006824000R7 - FRONT LUGGAGE COMPARTEMENT DOOR

	P2R reference	66002
	Maker reference	252420

DOOR CLOSING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -252420

	P2R reference	66301
	Maker reference	297498

SCREW - FOR FAIRINGS FASTENING (3,5X13) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -297498-

	P2R reference	140004
	Maker reference	1B003658

GLOVE BOX LOCK SPRING "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER 125-250-300 -1B003658-

	P2R reference	66022
	Maker reference	257614

DOOR FIXING BRACKET "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -257614-

	P2R reference	91999
	Maker reference	675478

GLOVE BOX LEVER "PIAGGIO GENUINE PART" VESPA 50-125 PRIMAVERA, SPRINT -675478-

	P2R reference	92001
	Maker reference	675490

TRAPDOOR PLATE "PIAGGIO GENUINE PART" 50-125 VESPA PRIMAVERA, SPRINT -675490

	P2R reference	92000
	Maker reference	675489

675489 - LEVIER SERRURE PORTE

	P2R reference	66314
	Maker reference	299972

299972 - VIS

	P2R reference	67162
	Maker reference	577620

577620 - ECROU

	P2R reference	75620
	Maker reference	1B000588

1B000588 - PORTE COFFRE A GANTS

	P2R reference	73358
	Maker reference	CM178603

SCREW - SELF DRILLING (M4,2X13) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -CM178603

	P2R reference	65832
	Maker reference	199190

EXPANSION PLUG "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -199190-

	P2R reference	95229
	Maker reference	CM022807

CM022807 - SUPPORT

	P2R reference	109141
	Maker reference	1B001478

1B001478 - RESSORT
