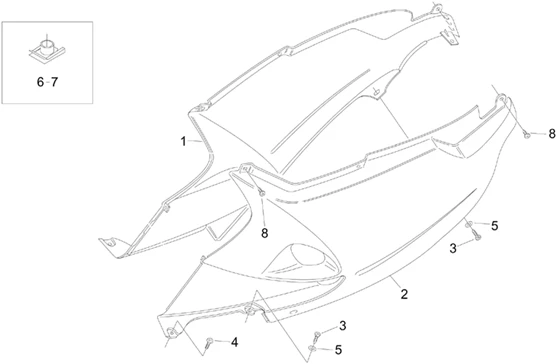

Chassis : 28.15 CARROSSERIE POSTERIEURE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/235/Amico_50_1996-1998_28.15.PNG)
1 |
Flanc ar. D, bleu/gris; |
||||||
|
1 |
Flanc ar. D, rouge; |
||||||
|
1 |
Flanc ar. D, bleu; |
||||||
|
1 |
Flanc ar. D, gris; |
||||||
|
1 |
Flanc ar. D, rouge; |
||||||
|
1 |
Flanc ar. D, gris; |
||||||
|
1 |
Flanc ar. D, bleu; |
||||||
|
1 |
Flanc ar. D, viol. mauve; |
||||||
|
1 |
Flanc ar. D, azurite; |
||||||
|
2 |
Flanc ar. G, bleu/gris; |
||||||
|
2 |
Flanc ar. G, rouge; |
||||||
|
2 |
Flanc ar. G, bleu; |
||||||
|
2 |
Flanc ar. G, gris; |
||||||
|
2 |
Flanc ar. G, rouge; |
||||||
|
2 |
Flanc ar. G, gris; |
||||||
|
2 |
Flanc ar. G, bleu; |
||||||
|
2 |
Flanc ar. G, viol. mauve; |
||||||
|
2 |
Flanc ar. G, azur; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/1/img/71881.jpg)
3 |
VIS PARKER (5,5X22) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150425 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/3/img/71933.jpg)
4 |
VIS BRIDE BTR (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152246- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/3/img/71873.jpg)
5 |
RONDELLE PLATE (5,5X15X1,2) ORIGINE PIAGGIO COMMUN A LA GAMME Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
AP8102041 - CLIP Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/5/7/img/72157.jpg)
7 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8202449 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/8/7/4/img/50874.jpg)
8 |
VIS PARKER (5,5X15,9) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150426 Plus d'informationsQuantité requise : 2 |
