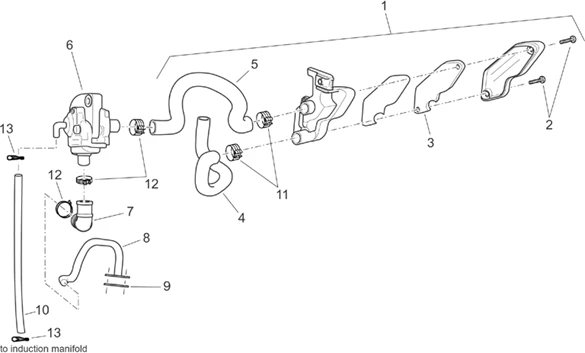

Chassis : 28.28 AIR SECONDAIRE II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/238/Atlantic_125_2003-2006_28.28.PNG)
1 |
840473 - FILTRE A AIR Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
Vis taraud |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/4/8/img/69148.jpg)
3 |
FILTRE BOITIER SECONDAIRE ORIGINE PIAGGIO 250 BEVERLY, X9 2006< -840476 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/2/8/1/img/69281.jpg)
4 |
TUBE RECYCLAGE DE GAZ ORIGINE COMMUN A LA GAMME PIAGGIO -843400 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
841558 - TUYAU FILTRE A AIR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/7/8/img/68878.jpg)
6 |
VOLET/SOUPAPE "S.A.S." ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 CC -82996R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/6/0/img/69160.jpg)
7 |
MANCHON RACCORD AIR ORIGINE PIAGGIO COMMUN A LA GAMME -840587 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
840585 - TUBE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/8/9/img/68989.jpg)
9 |
JOINT CANALISATION RECYCLAGE DES GAZ ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER 50CC 4T/MAXISCOOTER 125 -832059- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/6/8/img/70868.jpg)
10 |
DURITE/TUYAU ESSENCE (5.5X10) ORIGINE APRILIA-MOTO GUZZI COMMUN A LA GAMME -896544- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
11 |
COLLIER SERRAGE DURITE (22.6) ORIGINE PIAGGIO COMMUN A LA GAMME -CM001905- Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
Collier serr. Tube |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/8/8/img/72888.jpg)
13 |
COLLIER DE SERRAGE DURITE (5X8) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002901 Plus d'informationsQuantité requise : 2 |
