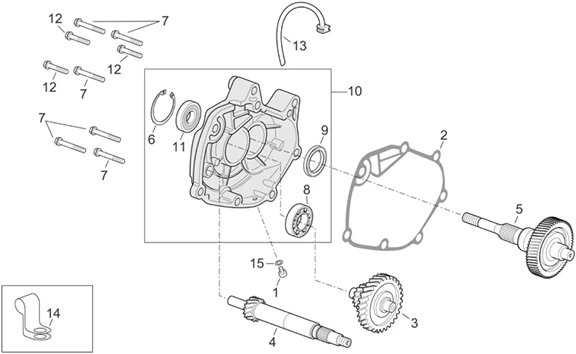

Moteur : 29.45 TRANSMISSION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/242/Atlantic_500_Sprint_2005-2008_29.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
1 |
VIS BTR (8X12) ORIGINE PIAGGIO COMMUN A LA GAMME -269755 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/5/2/img/69552.jpg)
2 |
JOINT COUVERCLE REDUCTEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 -847963 Plus d'informationsQuantité requise : 1 |
||||||
3 |
8299945 - ARBRE DE RENVOI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/0/7/img/70507.jpg)
4 |
ARBRE DE POULIE RECEPTRICE ORIGINE PIAGGIO 400-500 MP3, BEVERLY, 400 X-EVO, X8/GILERA 500 FUOCO, NEXUS/APRILIA 400-500 ATLANTIC, SCARABEO -1A017656- Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
Axe roue AR cpl. |
||||||
|
6 |
Bague seeger |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/8/7/2/img/109872.jpg)
7 |
VIS BRIDE TH (8X50) ORIGINE PIAGGIO COMMUN A LA GAMME -1A001623 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/1/0/img/68610.jpg)
8 |
ROULEMENT (20X52X15) ARBRE DE TRANSMISSION INTERMEDIAIRE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 400-500 CC -82660R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/9/img/68939.jpg)
9 |
JOINT SPI (38X50X7) AXE DE ROUE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -83082R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/8/8/img/68988.jpg)
10 |
COUVERCLE DE REDUCTEUR ORIGINE PIAGGIO 400-500 MP3, BEVERLY, 400 X8, X-EVO, 500 X10, X9/GILERA 500 FUOCO, NEXUS/APRILIA 400-500 ATLANTIC, SCARABEO -8320525- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/3/9/3/img/139393.jpg)
11 |
ROULEMENT (30X55X13) DE TRANSMISSION ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -1A005376R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/1/8/img/72718.jpg)
12 |
VIS BRIDE TH (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -B016772- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/3/1/img/68931.jpg)
13 |
RENIFLARD/EVENT ORIGINE PIAGGIO 125 X9, HEXAGON/GILERA 125 RUNNER, DNA/APRILIA 400-500 ATLANTIC -830671 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
487948 - COLLIER Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
15 |
JOINT DE VIDANGE CARTER DE TRANSMISSION (8,2X12X1) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -485703- Plus d'informationsQuantité requise : 1 |
