Eclatés de véhicule - APRILIA BICI ELETTRICA 50 Bici Elettrica Enjoy 01
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

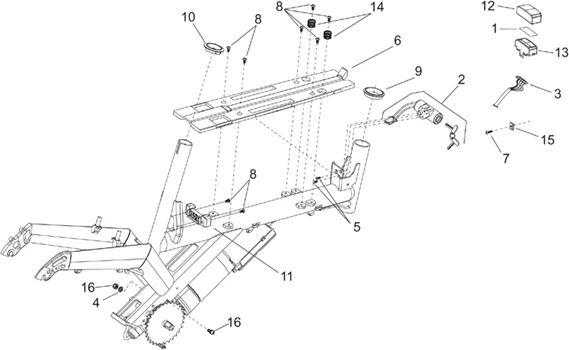

Chassis : 28.06 CHASSIS II
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/554/Bici_Elettrica_Enjoy_01_28.06.PNG)
1 |
Décalco |
||||||
|
2 |
AP8000046 - BLOC DEMARREUR-BLOC Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
Voyant de contrôle |
||||||
|
4 |
Rondelle |
||||||
|
5 |
Vis |
||||||
|
6 |
Plaque sup.bte batt |
||||||
|
7 |
Vis |
||||||
|
8 |
Vis |
||||||
|
9 |
Pare-poussière |
||||||
|
10 |
Pare-poussière |
||||||
|
11 |
Plaque batterie |
||||||
|
12 |
Couvercle voyants |
||||||
|
13 |
Boîtier voyants |
||||||
|
13 |
Boîtier voyants |
||||||
|
14 |
Ressort |
||||||
|
15 |
Clip |
||||||
|
16 |
Vis+ecrou |
