Eclatés de véhicule - DERBI BOULEVARD 125 Boulevard 125 4T E3 2008 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

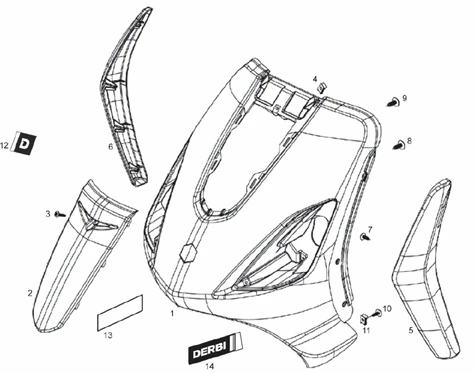

Châssis - parties plastiques - carrosseries : 20 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1137/Boulevard_125_4T_E3_2008_(EMEA)_20.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/7/2/img/67672.jpg)
1 |
FACE AVANT ORIGINE PIAGGIO 50-125 FLY 2000>2011 NOIR 94 -6219800090 Plus d'informationsQuantité requise : 1 |
||||||
1 |
FACE AVANT ORIGINE PIAGGIO 50-125 FLY 2000>2007 BLANC 724 -6219800087- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/6/8/3/img/67683.jpg)
2 |
COUVERCLE DE FACE AVANT ORIGINE PIAGGIO 50-125 FLY 2006>2011 NOIR 94 -6219830090- Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
6219830087 - COUVERCLE * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/7/3/0/img/67730.jpg)
3 |
VIS CRUCIFORME (4.2X15) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -622840 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/2/6/img/72926.jpg)
4 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
621992000C - DEFLECTEUR GAU. Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
621993000C - DEFLECTEUR DRT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
7 |
VIS DE CARENAGE (3,5X13) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -297498- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/7/img/66117.jpg)
8 |
VIS TBC (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -272836 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
VIS DE CARENAGE (3,5X13) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -297498- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/5/img/66035.jpg)
10 |
VIS AUTOTARAUDEUSE (4,2X13) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -259349- Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
ECROU TOLE (4,2 PARKER) ORIGINE PIAGGIO COMMUN A LA GAMME -CM017410 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
656281 - EMBLEME Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
656282 - MONOGRAMME Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
656283 - MONOGRAMME Plus d'informationsQuantité requise : 1 |
