Eclatés de véhicule - DERBI BOULEVARD 200 Boulevard 200 E3 2005-2006 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

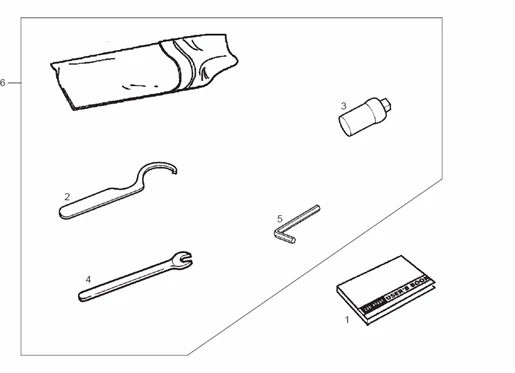

Vues éclatées : 26 OUTILLAGE SPECIAL
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1140/Boulevard_200_E3_2005-2006_(EMEA)_26.png)
Rechercher
1 |
MANUAL INSTRUCC.BLD.5 IDIOMAS |
||||||
|
2 |
CLE AMORTISSEUR |
||||||
|
3 |
CLE A BOUGIES |
||||||
|
4 |
CLÉ PLATE 10-13 |
||||||
|
6 |
TROUSSE OUTILS |
