Eclatés de véhicule - MOTO GUZZI CALIFORNIA 1000 California II 1000 1983-1986
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

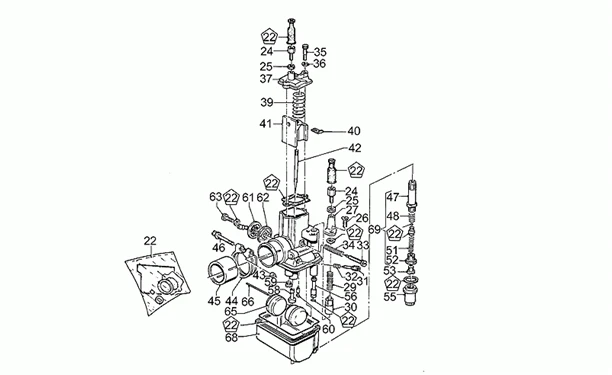

Moteur : 34.20 CARBURATEURS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/479/California_II_1000_1983-1986_34.20.PNG)
22 |
GU17939950 - KIT JOINTS CARBURATEUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/5/5/img/129155.jpg)
24 |
VIS TENDEUR DE CABLE ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU12937200 Plus d'informationsQuantité requise : 2 |
||||||
|
25 |
|
||||||
|
26 |
GU13937900 - VIS Plus d'informationsQuantité requise : 1 |
||||||
|
27 |
GU17937450 - COUVERCLE SOUPAPE Plus d'informationsQuantité requise : 1 |
||||||
|
29 |
GU13937600 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
30 |
GU13937800 - SOUPAPE DE DEMARRAGE Plus d'informationsQuantité requise : 1 |
||||||
|
31 |
Vis réglage minimum |
||||||
|
32 |
GU13936300 - RESSORT Plus d'informationsQuantité requise : 1 |
||||||
|
33 |
Vis réglage soupape gaz |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/5/1/img/65751.jpg)
34 |
RESSORT VIS AIR CARBU ORIGINE PIAGGIO COMMUN A LA GAMME -152608- Plus d'informationsQuantité requise : 1 |
||||||
|
35 |
|
||||||
|
36 |
GU13932900 - RONDELLE ELASTIQUE Plus d'informationsQuantité requise : 1 |
||||||
|
37 |
|
||||||
|
39 |
|
||||||
|
40 |
|
||||||
|
41 |
BOISSEAU DE GAZ |
||||||
|
42 |
Pointeau conique K23 |
||||||
|
43 |
|
||||||
|
44 |
|
||||||
|
45 |
|
||||||
|
46 |
|
||||||
|
47 |
|
||||||
|
48 |
Piston |
||||||
|
51 |
|
||||||
|
52 |
|
||||||
|
53 |
GICLEUR PRINCIPAL |
||||||
|
55 |
|
||||||
|
56 |
GU17936067 - JET DEMARRAGE 75 Plus d'informationsQuantité requise : 1 |
||||||
|
58 |
GU28935511 - GICLEUR AB 264 Plus d'informationsQuantité requise : 1 |
||||||
|
59 |
GU66935910 - GICLEUR MINIMUM 50 Plus d'informationsQuantité requise : 1 |
||||||
|
60 |
Pointeau |
||||||
|
61 |
AP8106794 - PIPETTE RACC. TUYAU ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/1/9/0/9/img/131909.jpg)
62 |
GU43934000 - FILTRE ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
63 |
|
||||||
|
65 |
Flotteur |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/9/1/6/8/img/129168.jpg)
66 |
AXE DE FLOTEUR ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU13933100 Plus d'informationsQuantité requise : 1 |
||||||
|
68 |
|
||||||
|
69 |
|
