Eclatés de véhicule - GILERA EAGLET 50 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

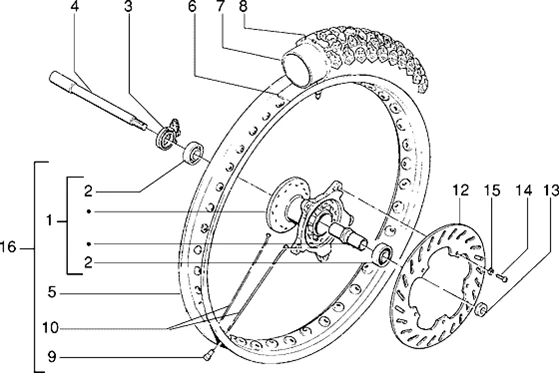

Suspensions-roues : T29 ROUE AV.
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/673/Eaglet_1998-2005_T29.PNG)
1 |
MOYEU ROUE AVANT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/1/0/2/img/68102.jpg)
2 |
ROULEMENT (15X35X11) DE ROUE AVANT ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -649910 Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
ENTRAINEMENT COMPT |
||||||
|
4 |
463096 - AXE ROUE AVANT Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
JANTE AV |
||||||
|
6 |
BANDE PROTECTION |
||||||
|
7 |
CHAMBRE A AIR |
||||||
|
8 |
PNEU 2,75X18 |
||||||
|
9 |
ECROU DE RAYON |
||||||
|
10 |
RAYON |
||||||
|
12 |
DISQUE FREIN |
||||||
|
13 |
ENTRETOISE |
||||||
|
14 |
VIS |
||||||
|
15 |
RONDELLE |
||||||
|
16 |
4630935 - ROUE AVT 463093 Plus d'informationsQuantité requise : 1 |
