Eclatés de véhicule - DERBI GPR 50 GPR R 50cc REPLICA MALOSSI 2007 E2 2ver
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

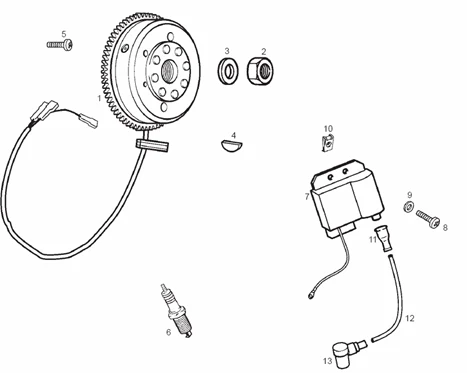

Tables : 24 VOLANT MAGNÉTIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1121/GPR_R_50cc_REPLICA_MALOSSI_2007_E2_2ver_24.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/6/1/img/68761.jpg)
1 |
ALLUMAGE (AVEC DEMARREUR) ORIGINE DERBI 50 SENDA DRD PRO 2005>2011/GILERA SMT 2006>, RCR 2006>/APRILIA RS 2006>2016 -82852R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/3/img/69503.jpg)
2 |
ECROU ALLUMAGE ORIGINE PIAGGIO 50 GILERA SMT, RCR 2006>/DERBI SENDA 2006>/APRILIA SX, RX, RS 2006>, RS4 2011> -847235- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/7/2/7/img/151727.jpg)
3 |
RONDELLE ROTOR ALLUMAGE ORIGINE PIAGGIO GILERA 50 SMT, RCR/DERBI 50 SENDA 2006>/APRILIA 50 SX, RX, RS -1A011675- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/8/img/69488.jpg)
4 |
CLAVETTE DE VOLANT ALLUMAGE ET EMBRAYAGE ORIGINE PIAGGIO 50 GILERA SMT, RCR 2006>/DERBI SENDA 2000>/APRILIA RS, RX, SX 2006>, RS4 2011> -847215- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/5/0/1/img/69501.jpg)
5 |
VIS ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -847233- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/5/7/img/69457.jpg)
6 |
BOUGIE B8ES ORIGINE PIAGGIO 50 GILERA SMT, RCR/DERBI SENDA 2006>2010/ MOTO-GUZZI V65, NEVADA, STRADA -847085- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/7/8/7/img/64787.jpg)
7 |
BOBINE ALLUMAGE ORIGINE DERBI 50 SENDA 2002>2017 /GILERA 50 SMT 2006>2017 /APRILIA 50 RS, RX, SX 2006>2017 -00H03330171- Plus d'informationsQuantité requise : 1 |
||||||
8 |
00012162000 - BOULON TETE HEX.5M80X15 Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
BOULON S03105900 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
10 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
00F03300731 - CAPUCHON Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/8/img/65668.jpg)
12 |
CABLE HAUTE TENSION ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -080341 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/0/8/3/img/64083.jpg)
13 |
00G03301271 - PIPE DE BOUGIE Plus d'informationsQuantité requise : 1 |
