Eclatés de véhicule - DERBI GPR 125 GPR RACING & R 125cc 2004-2006 E2 2ed
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

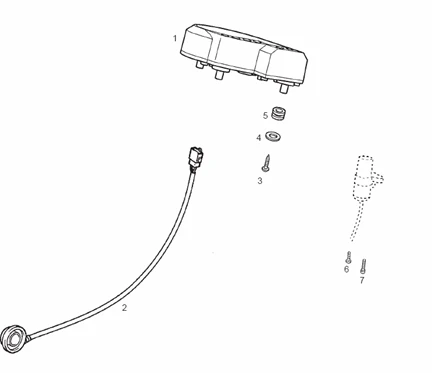

Tables : 13 INSTRUMENTS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1156/GPR_RACING_&_R_125cc_2004-2006_E2_2ed_13.png)
1 |
00H04327031 - BOITIER TABLEAU BORD (KM/H) - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/8/7/img/70887.jpg)
2 |
CAPTEUR DE VITESSE/CABLE/COMMANDE DE COMPTEUR ORIGINE DERBI 50 DRD, GPR 2005>2011/APRILIA 50 RX 2006>2017, SX 2006>2017, RS 2006>2019 -898626- Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
00011941300 - VIS Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/4/8/0/img/69480.jpg)
4 |
RONDELLE PLATE (5X15X1) ORIGINE PIAGGIO COMMUN A LA GAMME -847181 Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
00H01602941 - CAOUTCHOUC PASSE-CABLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/0/3/2/img/65032.jpg)
6 |
VIS A ARRACHEMENT/AUTO-CASSANTE BTR (8X20) ORIGINE PIAGGIO COMMUN A LA GAMME -00H06300791 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/2/9/img/71829.jpg)
7 |
VIS BTR (8X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150169 Plus d'informationsQuantité requise : 1 |
