Eclatés de véhicule - VESPA VESPA GT 200 Granturismo 200 L 1998-2005
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

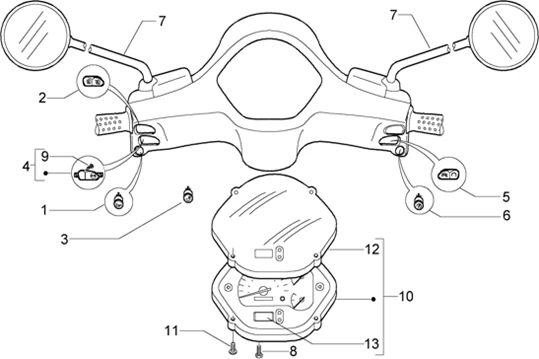

Connexions électriques : T43 DISPOSITIFS ELECTRIQUES-COMPTEUR KILOMETRIQUE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/723/Granturismo_200_L_1998-2005_T43.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/7/img/67177.jpg)
1 |
BOUTON/COMMUTATEUR AVERTISSEUR ORIGINE PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT GAUCHE -58058R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/8/2/0/img/77820.jpg)
2 |
CONTACTEUR/COMMUTATEUR CODE PHARE ORIGINE PIAGGIO 125 VESPA GTS, 50-125 VESPA LX, VESPA-S -294877 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/2/7/1/img/67271.jpg)
3 |
BOUTON/CONTACTEUR OUVERTURE DE SELLE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -582988 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/8/0/4/img/77804.jpg)
4 |
BOUTON/COMMUTATEUR CLIGNOTANTS ORIGINE PIAGGIO 50-125 VESPA LX, VESPA-S, 125 VESPA GTS -294723- Plus d'informationsQuantité requise : 1 |
||||||
5 |
COMMUTATEUR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/2/0/9/1/img/82091.jpg)
5 |
BOUTON ARRET MOTEUR/COUPE CIRCUIT ORIGINE PIAGGIO 50-125 VESPA LX 2005>, VESPA-S 2007>, 125-250-300 VESPA GTS -584599- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/7/6/img/67176.jpg)
6 |
BOUTON DEMARRAGE ORIGINE PIAGGIO 50 TYPHOON, NRG, FLY, ZIP, 125 FLY, LIBERTY, 125-250-400 X8, X9, X-EVO, BEVERLY/GILERA 50 STALKER/APRILIA 125-300-500 SCARABEO -58057R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/3/6/4/img/95364.jpg)
7 |
RETROVISEUR GAUCHE ORIGINE PIAGGIO 125 VESPA GT 1998>2005 -CM073404- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/3/6/5/img/95365.jpg)
7 |
RETROVISEUR DROIT ORIGINE PIAGGIO 125 VESPA GT 1998>2005 -CM073405 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111 Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/1/img/66301.jpg)
9 |
VIS DE CARENAGE (3,5X13) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -297498- Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
COMPTEUR ORIGINE PIAGGIO 125 VESPA GT 1998>2005, VESPA GTS 2005> -58157R- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/9/2/img/66092.jpg)
11 |
VIS AUTOTARAUDEUSE (3.85X16) CRUCIFORME ORIGINE PIAGGIO COMMUN A LA GAMME -270793 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/8/3/1/img/67831.jpg)
12 |
VITRE DE COMPTEUR ECIE 4 TROUS ORIGINE PIAGGIO 50-125 LIBERTY 2005>, VESPA LX 2005>, 125 VESPA GTS 2007> -639414 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
13 |
HORLOGE/MONTRE ORIGINE PIAGGIO 50-125 VESPA LX, VESPA-S, LIBERTY, 125-250-300 VESPA GTS, X7, TRIPORTEUR APE 50/APRILIA 125-250-300-400-500 ATLANTIC, 125 SCARABEO/GILERA 50 STAKER -AP8212406- Plus d'informationsQuantité requise : 1 |
