Eclatés de véhicule - MOTO GUZZI GT 1000 1987-1991
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

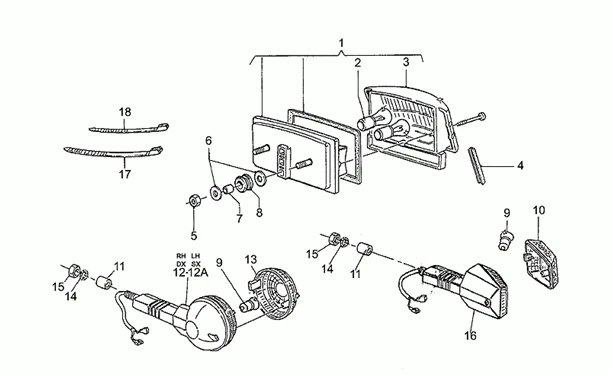

Chassis : 33.08 FEU ARRIÈRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/493/GT_1000_1987-1991_33.08.PNG)
1 |
Feu arrière |
||||||
|
2 |
GU93450224 - LAMPE (OU AMPOULE) 12V/5-21W Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
Glace phare AR |
||||||
|
4 |
JOINT |
||||||
|
5 |
GU92630206 - ECROU M6X1 Plus d'informationsQuantité requise : 2 |
||||||
|
6 |
GU95100118 - RONDELLE 6,2X18X1 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
GU91180607 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
8 |
CAOUTCHOUC PASSE FIL (8X18) ORIGINE PIAGGIO COMMUN A LA GAMME -GU91551086 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
GU93450127 - LAMPE (OU AMPOULE) 12V-10W Plus d'informationsQuantité requise : 2 |
||||||
|
10 |
GU23753710 - VITRE CLIGNOTANT Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
|
||||||
|
12 |
|
||||||
|
12 |
Indicateur direction D |
||||||
|
13 |
Vitre clignotant |
||||||
|
14 |
GU95022112 - RONDELLE EVENT. Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
GU92602512 - ECROU BAS M12X1,25 Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
Clignotant arrière |
||||||
|
17 |
GU14609650 - COLLIER 3,6X20,6 Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
GU49609601 - COLLIER 2,4X92 Plus d'informationsQuantité requise : 1 |
