Eclatés de véhicule - APRILIA LEONARDO 125 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

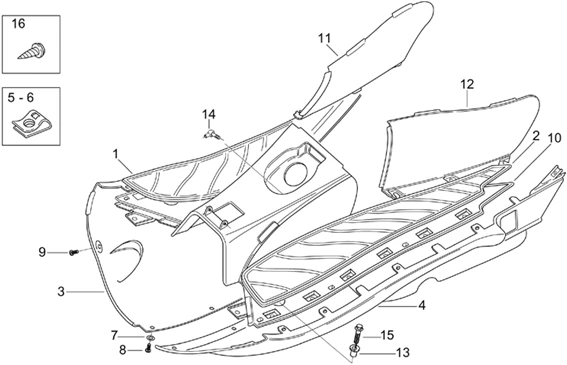

Chassis : 28.11 CARROSSERIE CENTRALE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/245/Leonardo_125_1996-1998_28.11.PNG)
1 |
Tapis D gris; |
||||||
|
2 |
Tapis G gris; |
||||||
|
3 |
Flanc ss-rep.pi. D, bleu; |
||||||
|
3 |
Flanc ss-rep.pi. D, gris; |
||||||
|
3 |
Flanc ss-rep.pi. D, rouge; |
||||||
|
3 |
Flanc ss-rep.pi. D, vert; |
||||||
|
3 |
Flanc ss-rep.pi. D, jaune; |
||||||
|
3 |
Flanc ss-rep.pi. D, viol; |
||||||
|
3 |
AP8139213 - FLANC SS-REP.PI. D, BLEU Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8138610 - FLANC SS-REP.PI. G, BLEU S. Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
Flanc ss-rep.pi. G, gris; |
||||||
|
4 |
Flanc ss-rep.pi. G, rouge; |
||||||
|
4 |
Flanc ss-rep.pi. G, vert; |
||||||
|
4 |
Flanc ss-rep.pi. G, jaune; |
||||||
|
4 |
Flanc ss-rep.pi. G, violet; |
||||||
|
4 |
AP8139214 - FLANC SS-REP.PI. G, BLEU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
5 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
6 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/4/img/71844.jpg)
7 |
RONDELLE PLATE (5.5X15X1.6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150248- Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/4/img/71934.jpg)
8 |
VIS BTR TETE BOMBEE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152267- Plus d'informationsQuantité requise : 5 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/7/img/71957.jpg)
9 |
VIS BRIDE BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152298- Plus d'informationsQuantité requise : 4 |
||||||
|
10 |
AP8138930 - PLANCHER REPOSE-PIEDS NOIR Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
Abattant latéral D noir; |
||||||
|
12 |
AP8138176 - ABATTANT LATERAL G NOIR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/3/2/img/71432.jpg)
13 |
DOUILLE EN T (6.1X10X5.5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8121075 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
AP8102699 - RACC.2 VOIES 90° BLA Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/6/9/7/img/69697.jpg)
15 |
VIS BRIDE TH (5X0,8 L.28) ORIGINE PIAGGIO COMMUN A LA GAMME -855799 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
16 |
VIS CRUCIFORME (3.9X14) TARAUD CARENAGE INOX ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MOTO -AP8150413- Plus d'informationsQuantité requise : 2 |
