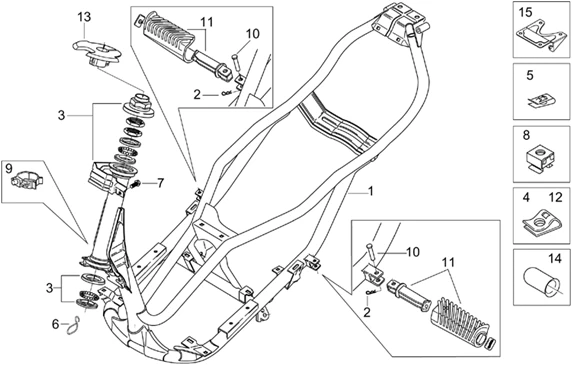

Chassis : 28.01 CHASSIS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/249/Leonardo_125_ST_2001-2004_28.01.PNG)
1 |
AP8146577 - CADRE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/3/8/img/72138.jpg)
2 |
GOUPILLE ORIGINE PIAGGIO COMMUN A LA GAMME/AXE TRAPPE ESSENCE DERBI 50 SENDA 2018> -AP8201643 Plus d'informationsQuantité requise : 2 |
||||||
|
3 |
AP8123685 - SERIE DIRECTION COMPLETE * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
4 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 11 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/3/img/72143.jpg)
5 |
ECROU TOLE ORIGINE PIAGGIO COMMUN A LA GAMME-AP8201763 Plus d'informationsQuantité requise : 10 |
||||||
|
6 |
Guide-câble; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/3/9/img/71939.jpg)
7 |
VIS BRIDE TH (5X15) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152273 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/2/1/img/57021.jpg)
8 |
ECROU EN CAGE M6 ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221213 Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
AP8220269 - GUIDE-CABLE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP8135677 - PIVOT REPOSE-PIEDS Plus d'informationsQuantité requise : 2 |
||||||
|
11 |
AP8135975 - R-PIED PASS.-PAIRE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
12 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 11 |
||||||
|
13 |
AP8117210 - PROTECTION BR?LURE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/8/4/img/72284.jpg)
14 |
DOUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8220460 Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
AP8158322 - PATTE-SUP. Plus d'informationsQuantité requise : 1 |
