Eclatés de véhicule - APRILIA MOJITO 125 2003-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

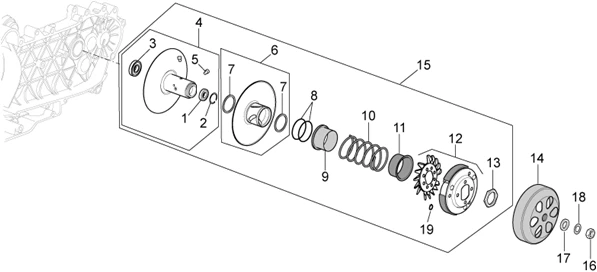

Moteur : 29.52 EMBRAYAGE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/257/Mojito_125_2003-2007_29.52.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/5/2/3/img/68523.jpg)
1 |
CAGE A AIGUILLES (20X29X18) DE CORRECTEUR DE COUPLE MAXISCOOTER ORIGINE PIAGGIO COMMUN A LA GAMME 125-250-300 -82518R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/2/9/img/66629.jpg)
2 |
CLIPS/CICLIPS DE POULIE ENTRAINEE ORIGINE PIAGGIO 125-250-300 -483226 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/7/7/img/68677.jpg)
3 |
ROULEMENT (17X30X7) DE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTEUR 125-250-300 -82753R - Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/2/7/img/68927.jpg)
4 |
DEMI POULIE RECEPTRICE (PARTIE FIXE) ORIGINE PIAGGIO 125 MP3, X8, X9, X10, VESPA GTS, VESPA LX, YOURBAN, TYPHOON/GILERA 125 NEXUS, RUNNER/APRILIA 125 ATLANTIC, SCARABEO, SPORT-CITY, SR-MAX -830580- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/7/7/img/66577.jpg)
5 |
AXE/PIVOT DE GUIDAGE POULIE EMBRAYAGE ORIGINE PIAGGIO 125 RUNNER, X9 2005< -479415- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/2/img/68772.jpg)
5 |
AXE DE GUIDAGE DE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -828717 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/4/img/70704.jpg)
6 |
FLASQUE MOBILE DE POULIE RECEPTRICE ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007 (LIVRE SANS JOINT TORIQUE) -879002- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/7/0/3/img/70703.jpg)
6 |
FLASQUE MOBILE DE POULIE RECEPTRICE (LIVRE AVEC JOINT TORIQUE) ORIGINE PIAGGIO 150 LIBERTY, FLY, VESPA LX, VESPA-S 2009> -878998- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/2/img/66392.jpg)
7 |
JOINT SPI (41X48X4) ORIGINE PIAGGIO COMMUN A LA GAMME -431089 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/2/img/66382.jpg)
8 |
JOINT DE POULIE RECEPTRICE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -430585- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/9/4/img/66394.jpg)
9 |
GUIDE INTERIEUR DE RESSORT POULIE ENTRAINEE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -4310935- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/4/4/2/img/70442.jpg)
10 |
RESSORT CORRECTEUR DE COUPLE ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005>/APRILIA 125 -872877 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/6/5/img/66765.jpg)
11 |
GUIDE EXTERIEUR DE RESSORT POULIE ENTRAINEE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -487936 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/3/3/img/73333.jpg)
12 |
EMBRAYAGE ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005>/APRILIA 125 ATLANTIC 2003 -CM161202- Plus d'informationsQuantité requise : 1 |
||||||
13 |
Bague |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/0/9/img/69309.jpg)
14 |
TAMBOUR D'EMBRAYAGE ORIGINE PIAGGIO 125-250-300 MP3, BEVERLY, 125-250 X8, X9-EVO, X-EVO, X7/GILERA 125-250-300 NEXUS, 125 RUNNER 4T/APRILIA 125-250-300 SPORT-CITY-ONE, ATLANTIC -8440494- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/3/6/img/73336.jpg)
15 |
POULIE RECEPTRICE ORIGINE PIAGGIO 125 FLY 2005>, LIBERTY 2005>, TYPHOON 2012>, X8 STREET 2004>2006, VESPA LX 2005>, VESPA-S 2007>/APRILIA 125 MOJITO 2003>, SPORT-CITY ONE 2008> -CM162401- Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
CM162402 - POULIE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/3/3/8/img/73338.jpg)
15 |
POULIE RECEPTRICE ORIGINE PIAGGIO 125 MP3 2007>, BEVERLY 2005>, X8 2004>, X9 2003>, X10 2012>, X-EVO 2007>, VESPA GTS 2007>/GILERA 125 NEXUS 2007>, RUNNER 4T 2005>/APRILIA 125 ATLANTIC -CM162403- Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
Écrou |
||||||
|
17 |
Entretoise |
||||||
|
18 |
Rondelle |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/1/0/img/63810.jpg)
19 |
CLIPS/CIRCLIPS (9.3) DE POULIE ENTRAINEE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250 -006410- Plus d'informationsQuantité requise : 1 |
