Eclatés de véhicule - APRILIA MOJITO 125 E3 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

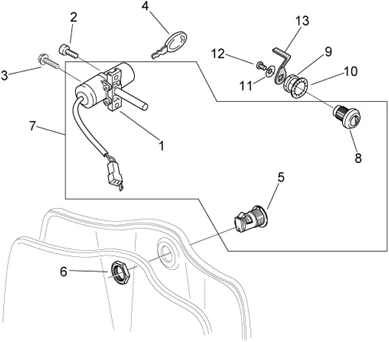

Chassis : 28.30 KIT SERRURE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/255/Mojito_125_E3_2008_28.30.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/4/7/img/57247.jpg)
1 |
CONTACTEUR A CLE/SERRURE ORIGINE PIAGGIO APRILIA 50-125 MOJITO -AP8224081 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/9/img/71919.jpg)
2 |
VIS A ARRACHEMENT/AUTO-CASSANTE TH (6X17) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152140 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/1/6/8/3/img/151683.jpg)
3 |
VIS BRIDE TH (6X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152278- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/5/4/2/3/img/45423.jpg)
4 |
EBAUCHE DE CLE FRAISEE SANS TRANSPONDEUR ORIGINE APRILIA COMMUN A LA GAMME -AP8104613- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/3/3/img/71233.jpg)
5 |
SERRURE VIDE-POCHE ORIGINE PIAGGIO 50 GULLIVER, MOJITO, 125-250 ATLANTIC, SPORT-CITY -AP8104612- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/8/4/img/71184.jpg)
6 |
ECROU SERRURE (M22 X 1.5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102523 Plus d'informationsQuantité requise : 1 |
||||||
7 |
AP8202149 - KIT SERRURE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/4/2/img/55442.jpg)
8 |
SERRURE DE COFFRE A CASQUE ORIGINE PIAGGIO APRILIA 50-125 MOJITO -AP8202169 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/8/img/50968.jpg)
9 |
ECROU BAS (M19X1) ORIGINE PIAGGIO COMMUN A LA GAMME - AP8152194 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/0/5/4/img/57054.jpg)
10 |
RONDELLE EVENTAIL (D 19) DE SERRURE ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221312 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/3/8/5/img/55385.jpg)
11 |
RONDELLE EVENTAIL FIXATION CROCHET DE SERRURE ORIGINE PIAGGIO APRILIA ATLANTIC 125-250-500 2003>2012,RS 125 2011>2017, RS 50 2006>2016, SR 50 1993>2014 -AP8201748 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/1/img/72141.jpg)
12 |
VIS CRUCIFORME (4X6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8201749 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
AP8202295 - LEVA CHIUSURA SELLA Plus d'informationsQuantité requise : 1 |
