Eclatés de véhicule - DERBI RAMBLA 300 Rambla 300 E3 2010-2011 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/derbi.svg)

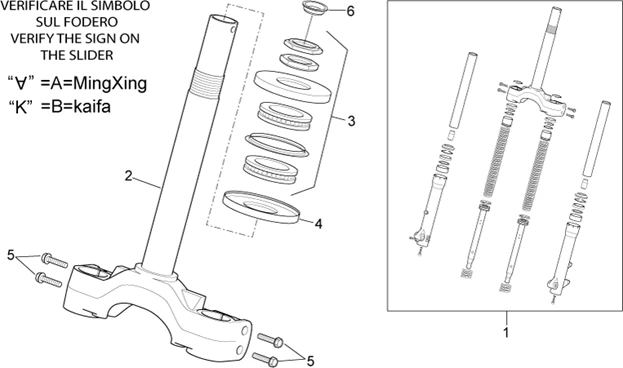

Suspensions - roues : 3 FOURCHE I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1110/Rambla_300_E3_2010-2011_(EMEA)_3.png)
1 |
85167R - FOURCHE COMPLETE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
894824 - STEERING COLUMN CONTROL Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
AP8163441 - BASE CON CANNOTTO Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/5/3/1/img/71531.jpg)
3 |
JEU DE DIRECTION ORIGINE PIAGGIO APRILIA 125-250-300 SPORT-CITY, 500 ATLANTIC 2001>2004, 125-250 SCARABEO 1999>2006 -AP8123794- Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
AP8123675 - CACHE POUSSIERE SUP. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/1/img/71951.jpg)
5 |
VIS BRIDE TH (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152289 Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
896500 - VIS Plus d'informationsQuantité requise : 4 |
||||||
|
6 |
AP8104880 - TAPPO TESTA TUBO D.32 Plus d'informationsQuantité requise : 2 |
