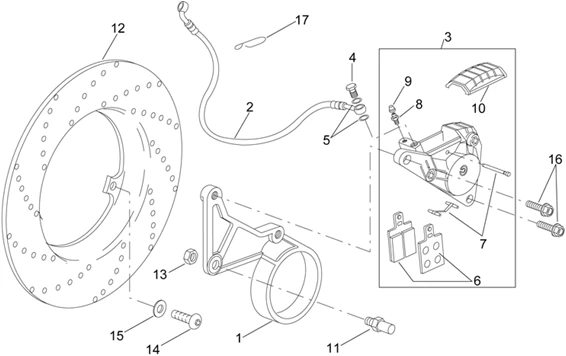

Chassis : 28.28 PINCE FREIN
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/266/RS_50_1996-1998_28.28.PNG)
1 |
Plaq. fix pince frein; |
||||||
|
2 |
AP8213195 - TUYAU FREIN ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
Pince frein AR |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/2/img/71282.jpg)
4 |
VIS TUYAU HUILE (10MM) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113003 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/8/3/img/71283.jpg)
5 |
RONDELLE (10X14X1,6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8113004 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/9/6/img/72196.jpg)
6 |
PLAQUETTES DE FREIN ARRIERE ORIGINE PIAGGIO APRILIA 50 RS 1993>1998, PEGASO, EUROPA, AF1 1991>1992 -AP8213051- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8213053 - GOUJON+RESSORT PINCE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/2/0/0/img/72200.jpg)
8 |
PURGE ETRIER DE FREIN ORIGINE PIAGGIO MOTO-GUZZI 850-1100 BREVA, GRISO, 1200 NORGE, SPORT/APRILIA 50 RS, PEGASO, EUROPA, SR -AP8213113- Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8113070 - CAPUCHON RENIFLARD Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
Couvercle pince frein |
||||||
|
11 |
Goujon pince |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/4/1/5/img/56415.jpg)
12 |
DISQUE DE FREIN ARRIERE INOX ORIGINE PIAGGIO APRILIA 50 AF1, EUROPA, RS 1993>1998 -AP8213269- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/3/img/71883.jpg)
13 |
ECROU AUTOBLOQUANT/NYLSTOP (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150431 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
AP8152057 - VIS Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
15 |
RONDELLE ELASTIQUE COURBE (8.5X15X0.8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150376- Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/9/img/71949.jpg)
16 |
VIS BRIDE TH (8X25) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152287- Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
AP8201417 - GUIDE CABLE TUYAU FREIN Plus d'informationsQuantité requise : 1 |
