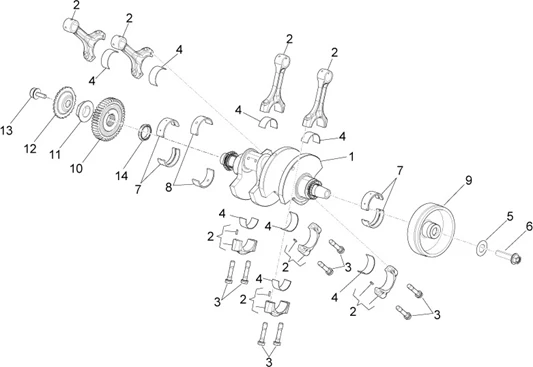

Moteur : 03.16 ARBRE MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1006/RSV4_1000_Racing_Factory_E4_ABS_2017_(EMEA_LATAM)_03.16.png)
1 |
2A000798AA - ARBRE MOTEUR CPL. Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
2A000798CC - ARBRE MOTEUR CPL. Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
2A000798EE - ARBRE MOTEUR CPL. Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
2A000798BB - ARBRE MOTEUR CPL. Plus d'informationsQuantité requise : 1 |
|||||||||
|
1 |
2A000798DD - ARBRE MOTEUR CPL. Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
1A019988DD- BIELLE COMPL. CLASS DD Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
2A000622CC - BIELLE COMPL. CLASS CC Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
2A000622BB - BIELLE COMPL. CLASS BB Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
2A000622AA - BIELLE CPL. AA Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
2A000622EE - BIELLE CPL. EE Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
1A019988DD- BIELLE COMPL. CLASS DD Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/2/6/3/3/img/62633.jpg)
3 |
VIS DE BIELLE ORIGINE PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4 2015> -1A019989 Plus d'informationsQuantité requise : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/1/1/8/0/img/211180.jpg)
4 |
COUSSINET DE BIELLE VERT ORIGINE PIAGGIO RSV4, TUONO 1100, 660 APRILIA 2017> -1A0252080V Plus d'informationsQuantité requise : 4 |
|||||||||
|
4 |
1A0252080B - CONROD HALF BEARING Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/2/0/5/1/img/212051.jpg)
4 |
COUSSINET DE BIELLE JAUNE ORIGINE PIAGGIO RSV4, TUONO 1100, 660 APRILIA 2017> -1A0252080G Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/5/2/6/img/146526.jpg)
4 |
COUSSINET DE BIELLE JAUNE ORIGINE PIAGGIO RSV4, TUONO 1100, 660 APRILIA 2017> -2A0008370G Plus d'informationsQuantité requise : 4 |
|||||||||
|
4 |
1A0252080B - CONROD HALF BEARING Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/6/5/2/7/img/146527.jpg)
4 |
COUSSINET DE BIELLE VERT ORIGINE PIAGGIO RSV4, TUONO 1100, 660 APRILIA 2017> -2A0008370V Plus d'informationsQuantité requise : 4 |
|||||||||
|
5 |
897478 - RONDELLE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/7/5/3/img/69753.jpg)
6 |
VIS TH (12X1,25X50) DE ROTOR ALLUMAGE ORIGINE PIAGGIO APRILIA 1000-1100 RSV-4, TUONO V4/MOTO-GUZZI 750 V7, 850 V9 -857206 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/4/1/img/108941.jpg)
7 |
COUSSINET DE PALLIER EXTERNE VILEBREQUIN REPERE JAUNE ORIGINE PIAGGIO APRILIA 1000 RSV-4, TUONO -8571320G Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/4/4/img/108944.jpg)
7 |
DEMI COUSSINET DE BIELLE VERT ORIGINE PIAGGIO RSV4 2015> -8571320V Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/4/2/img/108942.jpg)
7 |
COUSSINET CENTRAL VILEBREQUIN NOIR ORIGINE APRILIA 1000-1100 RSV4 2015> -8571320N Plus d'informationsQuantité requise : 4 |
|||||||||
|
8 |
8571300N - DEMI ROULEMENT Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/3/9/img/108939.jpg)
8 |
COUSSINET DE PALLIER CENTRAL VILEBREQUIN REPERE VERT ORIGINE PIAGGIO APRILIA 1000 RSV-4, TUONO -8571300V Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/9/3/6/img/108936.jpg)
8 |
DEMI COQUILLE DE PALIIER JAUNE ORIGINE APRILIA 1000-1100 RSV4 2013> -8571300G Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/5/6/4/2/6/img/156426.jpg)
9 |
VOLANT MAGNETIQUE COMPLET (KOKUSAN) ORIGINE PIAGGIO 1000/1100 RSV4, TUONO APRILIA 2011> -1A010574 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/9/0/img/108590.jpg)
10 |
2A000535 - ENGRENAGE Plus d'informationsQuantité requise : 1 |
|||||||||
|
11 |
B043204 - BAGUE Plus d'informationsQuantité requise : 1 |
|||||||||
|
12 |
857118 - CODEUR COMPTEUR Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/2/7/8/img/40278.jpg)
13 |
VIS SPECIALE (8X24) VILEBREQUIN ORIGINE APRILIA 1000-1100 RSVA 2020< -857077 Plus d'informationsQuantité requise : 1 |
|||||||||
|
14 |
897474 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
|||||||||
