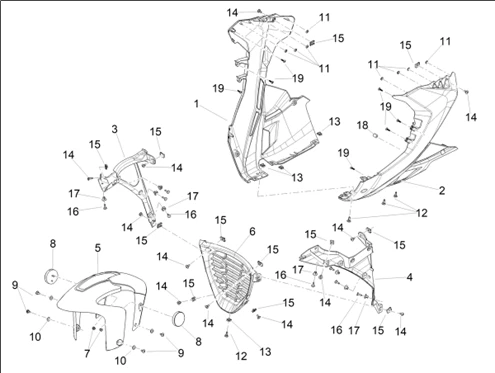

Carrosserie : 02.03 GARDE-BOUE AV.-EMBASEMENT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1312/RSV4_1100_Factory_E5_ABS_2025_(EMEA)_02.03.png)
1 |
RONDELLE EN T (6X17X6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8221349- Plus d'informationsQuantité requise : 1 |
|||||||||
|
2 |
2B012902 - CARENAGE INFERIEUR DROIT Plus d'informationsQuantité requise : 1 |
|||||||||
|
3 |
2B006974 RH BODY SIDE Plus d'informationsQuantité requise : 1 |
|||||||||
|
4 |
2B006975 RH BODY SIDE Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/7/4/7/9/9/img/174799.jpg)
5 |
GARDE BOUE AVANT ORIGINE APRILIA 660-1100 RS, TUONO 2021> -2B008635 Plus d'informationsQuantité requise : 1 |
|||||||||
|
6 |
2B008016 FRONT LOWER FAIRING Plus d'informationsQuantité requise : 2 |
|||||||||
|
7 |
AP81523066 - SELF-LOCKING NUT M5-DIN 6926 Z.B. Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/3/2/4/img/72324.jpg)
8 |
CATADIOPTRE ROND AMBRE ORIGINE PIAGGIO COMMIUN A LA GAMME -AP8224163- Plus d'informationsQuantité requise : 2 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
9 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150500- Plus d'informationsQuantité requise : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/0/img/71870.jpg)
10 |
RONDELLE ELASTIQUE COURBE (8.5X15X0.8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150376- Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/9/7/img/65797.jpg)
11 |
PLAQUETTE ELASTIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -181351- Plus d'informationsQuantité requise : 8 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/4/8/3/img/214483.jpg)
12 |
VIS BTR DE CARENAGE (5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -2B014101 Plus d'informationsQuantité requise : 4 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/4/1/1/9/img/64119.jpg)
13 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -00G04401462- Plus d'informationsQuantité requise : 4 |
|||||||||
|
14 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150500- Plus d'informationsQuantité requise : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
15 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 12 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/9/img/71769.jpg)
16 |
RIVET MALE ORIGINE PIAGGIO COMMUN A LA GAMME (ASSOCIE AP8144616) -AP8144563- Plus d'informationsQuantité requise : 6 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/7/3/img/71773.jpg)
17 |
RIVET FEMELLE ORIGINE PIAGGIO COMMUN A LA GAMME (ASSOCIE AP8144563) -AP8144616- Plus d'informationsQuantité requise : 6 |
|||||||||
|
18 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 1 |
|||||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/6/2/8/0/img/96280.jpg)
19 |
VIS TORX (4,2X16) AUTOTARAUDEUSE ORIGINE PIAGGIO COMMUN A LA GAMME -CM178606- Plus d'informationsQuantité requise : 8 |
|||||||||
Tous les éclatés de ce véhicule
-
