Eclatés de véhicule - APRILIA RSV4 1100 Factory E5 ABS 2021 (EMEA)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

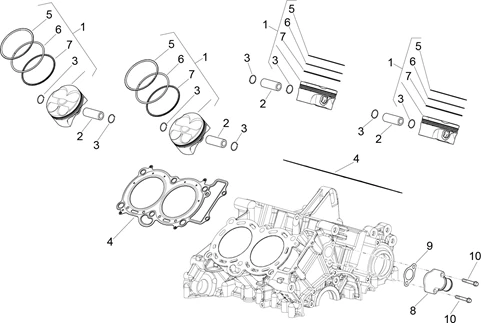

Moteur : 03.15 CYLINDRE - PISTON
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/988/RSV4_1100_Factory_E5_ABS_2021_(EMEA)_03.15.png)
1 |
PISTON (A) ORIGINE PIAGGIO 1100 RSV4 APRILIA 2019> -1A014402AA Plus d'informationsQuantité requise : 4 |
||||||
|
1 |
PISTON (B) ORIGINE PIAGGIO 1100 RSV4 APRILIA 2019> -1A014402BB Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/5/5/2/9/img/145529.jpg)
2 |
AXE DE PISTON ORIGINE PIAGGIO 660 RS, RSV4 APRILIA -2A000630 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/3/7/6/5/7/img/37657.jpg)
3 |
CLIPS/CIRCLIPS DE PISTON ORIGINE APRILIA COMMUN A LA GAMME -2A000450 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/7/9/img/108579.jpg)
4 |
JOINT CULASSE ORIGINE PIAGGIO 1100 RSV4, TUONO APRILIA 2015> -2A000370- Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
SEGMENT COUP FEU ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA -2A000734 Plus d'informationsQuantité requise : 4 |
||||||
|
6 |
SEGMENT ETANCHEITE ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA -2A000735 Plus d'informationsQuantité requise : 4 |
||||||
|
7 |
SEGMENT RACLEUR HUILE ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA -2A000739 Plus d'informationsQuantité requise : 4 |
||||||
|
8 |
857126 - RACCORD Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/9/1/2/5/img/149125.jpg)
9 |
JOINT RACCORD ORIGINE PIAGGIO RSV4 APRILIA 2017> -1A006321 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/3/2/img/70532.jpg)
10 |
VIS TH BRIDE (6X40) ORIGINE PIAGGIO COMMUN A LA GAMME -874550 Plus d'informationsQuantité requise : 2 |
