Eclatés de véhicule - GILERA RUNNER 50 Pure Jet ST 2008
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/gilera.svg)

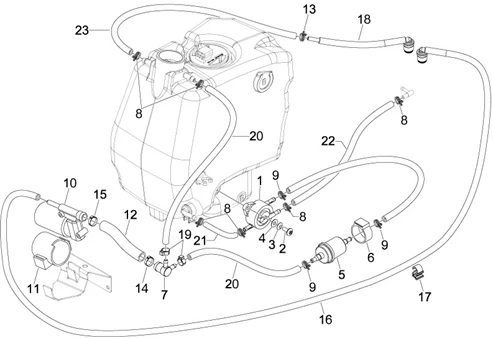

Châssis - parties plastiques - carrosseries : 02.53 INSTALATION DE L'ALIMENTATION
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/159/Runner_50_Pure_Jet_ST_2008_02.53.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/3/1/2/6/img/73126.jpg)
1 |
POMPE A ESSENCE ORIGINE PIAGGIO 50 FLY 4T 2012>, NRG 2005>, 125 MP3 2007>, X8 2004>, X-EVO 2007>/ 50-125 GILERA RUNNER 2005>/APRILIA 125 ATLANTIC 2003> -CM120903 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/3/2/img/66032.jpg)
2 |
VIS CRUCIFORME (5X16) ORIGINE PIAGGIO COMMUN LA GAMME -259151- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/5/img/65415.jpg)
3 |
RONDELLE GROWER (5,1X8,5X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -016405 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/8/2/img/65682.jpg)
4 |
RONDELLE PLATE (5.3X14X1) ORIGINE PIAGGIO COMMUN A LA GAMME -097733 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/7/2/8/9/img/77289.jpg)
5 |
FILTRE A ESSENCE ORIGINE PIAGGIO 125 MP3 2007>, X7 2008>, X8 2004>, X9 2003>, X-EVO 2007>, VESPA GTS 2007> 50 FLY 4T 2005>/GILERA 125 NEXUS 2007>, RUNNER 2004> 50 RUNNER PURE-JET 2005> -270423 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/1/8/img/66118.jpg)
6 |
SUPPORT ELASTIQUE ORIGINE PIAGGIO COMMUN A LA GAMME -272842 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/4/8/img/81348.jpg)
7 |
RACCORD EN " T " ORIGINE GILERA RUNNER -577710 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/2/img/72892.jpg)
8 |
COLLIER DE SERRAGE DURITE (9,4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002905 Plus d'informationsQuantité requise : 6 |
||||||
|
9 |
COLLIER DE SERRAGE DURITE (9,4X12) ORIGINE PIAGGIO COMMUN A LA GAMME -CM002905 Plus d'informationsQuantité requise : 3 |
||||||
10 |
640514 - POMPE ALIMENTATION Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/1/3/5/1/img/81351.jpg)
11 |
SUPPORT DE POMPE A ESSENCE ORIGINE PIAGGIO 50 NRG INJECTION/GILERA 50 RUNNER INJECTION -577753 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/9/5/2/0/3/img/95203.jpg)
12 |
DURITE ESSENCE ORIGINE PIAGGIO GILERA 50 RUNNER -CM018101 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/9/3/img/72893.jpg)
13 |
COLLIER POUR TUYAU DE 13MM ORIGINE PIAGGIO COMMUN A LA GAMME -CM002907- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/7/img/72867.jpg)
14 |
COLLIER SERRAGE DURITE (22.6) ORIGINE PIAGGIO COMMUN A LA GAMME -CM001905- Plus d'informationsQuantité requise : 1 |
||||||
|
15 |
COLLIER SERRAGE DURITE (22.6) ORIGINE PIAGGIO COMMUN A LA GAMME -CM001905- Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
949594 - TUYAU Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/9/1/7/img/72917.jpg)
17 |
PINCE CLIPS FIXATION DURITE ORIGINE PIAGGIO COMMUN A LA GAMME -CM013201 Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
949588 - TUYAU RETOUR Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/8/6/3/img/72863.jpg)
19 |
COLLIER SERRE TUBE ORIGINE PIAGGIO COMMUN A LA GAMME -CM001901- Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
1R000161 TUYAU ESSENCE Plus d'informationsQuantité requise : 1 |
||||||
|
21 |
|
||||||
|
22 |
|
||||||
|
23 |
1R000161 TUYAU ESSENCE Plus d'informationsQuantité requise : 1 |
