Eclatés de véhicule - APRILIA SL FALCO 1000 SL 1000 Falco 2000-2003
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

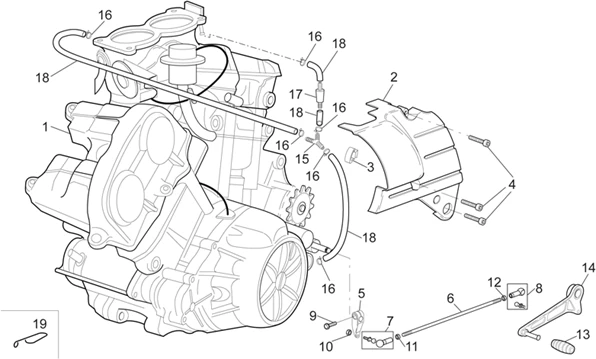

Moteur : 29.32 MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/568/SL_1000_Falco_2000-2003_29.32.PNG)
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
1 |
|
||||||
|
2 |
Carter pignon, gris; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/4/0/img/72140.jpg)
3 |
GUIDE CABLE ORIGINE PIAGGIO COMMUN A LA GAMME APRILIA / MOTO GUZZI -AP8201727 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/1/img/71841.jpg)
4 |
VIS BTR (6X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150220- Plus d'informationsQuantité requise : 3 |
||||||
|
5 |
AP8121354 - BIELLE RENVOI BO?TE Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
AP8121353 - TIGE RENVOI BO?TE DE VITESSES Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/2/6/8/img/71268.jpg)
7 |
ROTULE DE SELECTEUR DE VITESSE (FILTAGE A GAUCHE) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA /MOTO-GUZZI -AP8110053 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/5/img/72185.jpg)
8 |
ROTULE DE SELECTEUR DE VITESSE ( FILETAGE A DROITE) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI ET APRILIA -AP8210007 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/2/img/71942.jpg)
9 |
VIS BRIDE TH (6X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152279- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/8/2/img/71882.jpg)
10 |
ECROU AUTOBLOQUANT/NYLSTOP (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150430- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/1/8/img/71918.jpg)
11 |
ECROU TIGE DE SELECTEUR ORIGINE APRILIA COMMUN A LA GAMME -AP8152138 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/2/img/71812.jpg)
12 |
ECROU (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150026 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/4/2/2/img/71422.jpg)
13 |
CAOUTCHOUC LEVIER DE FREIN ARRIERE OU SELECTEUR ORIGINE PIAGGIO POUR MOTO-GUZZI/APRILIA -AP8120912 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
Levier boîte de vitesses |
||||||
|
15 |
AP8120116 - "RACCORD EN ""Y""" Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/9/7/img/71397.jpg)
16 |
COLLIER CLIC VERT (6.6X11X1) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120446 Plus d'informationsQuantité requise : 6 |
||||||
|
17 |
AP8104251 - SOUPAPE DE RETENUE Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
AP8144015 - TUYAU HUILE Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
Protection tube frein |
