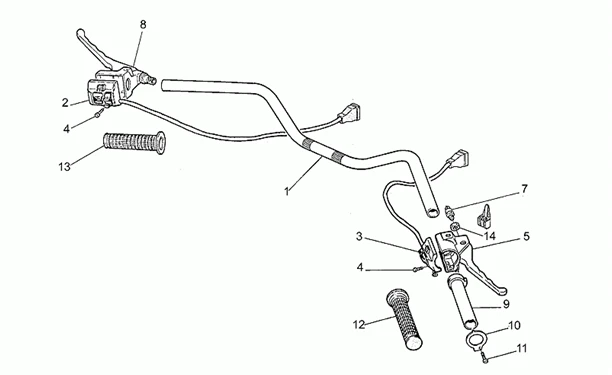

Chassis : 33.15 GUIDON - COMMANDES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/514/SP_II_1000_1983-1988_33.15.PNG)
1 |
|
||||||
|
2 |
GU28738040 - DEVIATEUR FEUX GCHE Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
GU28750340 - DEVIATEUR FEUX DTE Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
|
||||||
|
5 |
GU28605400 - COMMANDE FREIN AV Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
GU28741100 - INTERRUPTEUR STOP Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
GU28605500 - COMMANDE LEVIER EMBRAYAGE Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
Corps commande gaz |
||||||
|
10 |
Couvercle |
||||||
|
11 |
|
||||||
|
12 |
Poignée dr. |
||||||
|
13 |
GU14603000 - POIGNEE GC. Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
|
