Eclatés de véhicule - MOTO GUZZI SPORT 1200 Sport 1200 2006-2007
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

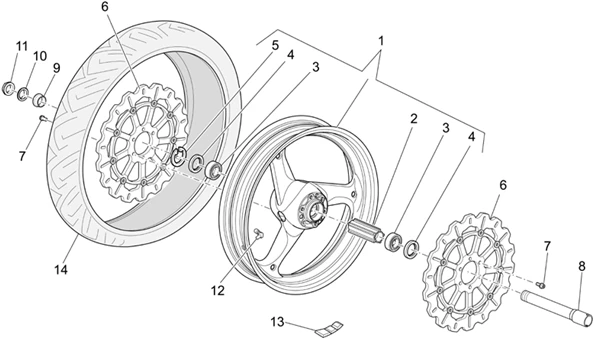

Chassis : 33.31 ROUE AV.I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/516/Sport_1200_2006-2007_33.31.PNG)
1 |
883883 - RUOTA ANT COMPLE 3,5X17" DARK GRAY * Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/5/5/img/128855.jpg)
1 |
ROUE AVANT BREMBO ORIGINE MOTO-GUZZI 1100 BREVA, 1200 GRISO, 1200 NORGE, 1200 SPORT GRIS FONCE -GU05610530 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/8/5/6/img/128856.jpg)
2 |
GU05615230 - ENTRETOISE ROULEMENTS Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
AP8125777 - ROULEMENT Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
JOINT SPI (30X47X7) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8125773 Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
AP8125779 - BAGUE SEEGER Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
977835 - DISCO FRENO ANT MARGHERITA Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/4/8/img/71948.jpg)
7 |
VIS BRIDE TH (8X20) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152286 Plus d'informationsQuantité requise : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/6/0/6/8/img/126068.jpg)
8 |
AXE DE ROUE AVANT ORIGINE PIAGGIO MOTO-GUZZI 850-1100-1200 BREVA, GRISO, 1200 NORGE, SPORT -GU05614130- Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8125791 - ENTRETOISE ROUE AVANT Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/7/2/img/132672.jpg)
10 |
RONDELLE PLATE (25.2X36X1) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95005325 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/8/4/img/50984.jpg)
11 |
ECROU DE ROUE ORIGINE APRILIA COMMUN A LA GAMME MOTO -AP8152335 Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
ECROU DE ROUE ORIGINE APRILIA COMMUN A LA GAMME MOTO -AP8152335 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/8/2/1/0/img/128210.jpg)
12 |
VALVE TUBELESS ORIGINE MOTO GUZZI COMMUN A LA GAMME -GU03617710 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
GU14616150 - CONTREPOIDS Plus d'informationsQuantité requise : 1 |
