Eclatés de véhicule - APRILIA SPORT CITY STREET 300 4T 4V E3 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

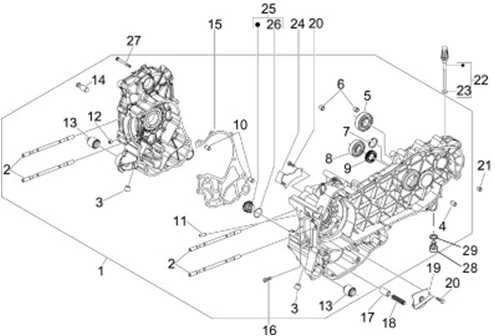

Tavole : 38 CARTER MOTEUR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/285/Sport_City_Street_300_4T_4V_E3_2012_38.PNG)
1 |
1A0009750A - CARTER COMPLET Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
1A0009750B - CARTER COMPLET Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/9/0/2/5/img/109025.jpg)
2 |
GOUJON DE CYLINDRE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 250-300 CC -1A003628R- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/7/3/img/72673.jpg)
3 |
BOUCHON (M12X1.5X11) ORIGINE PIAGGIO COMMUN A LA GAMME -B015433 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/6/img/72696.jpg)
4 |
DOUILLE DE CENTRAGE (9,5X15) CARTER ORIGINE PIAGGIO COMMUN ALA GAMME -B015956 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/9/img/68899.jpg)
5 |
ROULEMENT (15X42X13) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -83018R Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/7/img/72697.jpg)
6 |
PION DE CENTRAGE (11X10) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -B015957 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/6/9/9/img/72699.jpg)
7 |
CLIPS/CIRCLIPS (25X26,9X1,2) ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -B015959 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/0/8/2/img/69082.jpg)
8 |
ROULEMENT (20X47X14) DE REDUCTEUR (EX833701) ORIGINE PIAGGIO COMMUN A LA GAMME -1A024412R Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/7/7/5/img/68775.jpg)
9 |
JOINT ARBRE TRANSMISSION ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MAXISCOOTER 125-250-300 -82878R - Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
DOUILLE DE CENTRAGE (9,5X15) CARTER ORIGINE PIAGGIO COMMUN ALA GAMME -B015956 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/5/4/img/66654.jpg)
11 |
BUSE CARTER MOREUR ORIGINE PIAGGIO COMMUN A LA GAMME -484034 Plus d'informationsQuantité requise : 1 |
||||||
|
12 |
844582 - GICLEUR CARTER Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/7/0/4/img/66704.jpg)
13 |
SILENTBLOC DE CARTER MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME SCOOTER ET MAXISCOOTER -486081 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/4/3/img/66643.jpg)
14 |
PIVOT RESSORT DE BEQUILLE ORIGINE PIAGGIO COMMUN A LA GAMME -483785 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/5/7/3/img/70573.jpg)
15 |
JOINT DE CARTER MOTEUR ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 -875111 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111 Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
VIS CRUCIFORME (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -1A003111 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/6/4/img/68864.jpg)
17 |
VALVE DE PRESSION HUILE ORIGINE PIAGGIO COMMUN A LA GAMME -829661 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/6/img/66686.jpg)
18 |
RESSORT CARTER HUILE ORIGINE PIAGGIO COMMUN A LA GAMME -485655 Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
483767 - PANNEAU INFERIEURE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/8/9/0/img/68890.jpg)
20 |
VIS BRIDE TH (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -830061 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/1/4/2/img/66142.jpg)
21 |
PION DE CENTRAGE (7,5X12) ORIGINE PIAGGIO COMMUN A LA GAMME -277916- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/9/9/1/img/68991.jpg)
22 |
JAUGE NIVEAU HUILE TRANSMISSION ORIGINE PIAGGIO 125-250-300 X7, X8, X-EVO, X9, X10, BEVERLY, MP3, FLY, VESPA GTS VESPA LX, VESPA PRIMAVERA/APRILIA ATLANTIC, SR MAX/GILERA NEXUS, RUNNER -832130- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/8/6/4/3/img/68643.jpg)
23 |
JOINT/BAGUE ETANCHEITE (14,43X9,19X2,62) ORIGINE PIAGGIO COMMUN A LA GAMME -827085- Plus d'informationsQuantité requise : 1 |
||||||
|
24 |
485047 - PANNEAU SUPERIEURE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/3/7/1/img/69371.jpg)
25 |
SUPPORT/INSERT FILTRE A HUILE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -845861- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/8/8/img/66388.jpg)
26 |
JOINT TORIQUE INSERT PORTE FILTRE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER 125-250-300 CC -431065- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/5/img/72705.jpg)
27 |
VIS BRIDE TH (6X60) ORIGINE PIAGGIO COMMUN A LA GAMME -B016425 Plus d'informationsQuantité requise : 10 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/8/5/img/66085.jpg)
28 |
VIS BTR (8X12) ORIGINE PIAGGIO COMMUN A LA GAMME -269755 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/6/8/9/img/66689.jpg)
29 |
JOINT DE VIDANGE CARTER DE TRANSMISSION (8,2X12X1) ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME -485703- Plus d'informationsQuantité requise : 1 |
