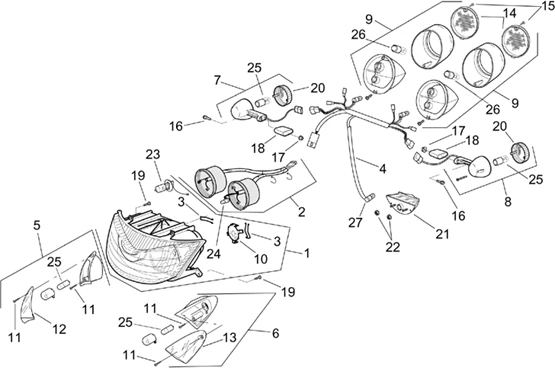

Chassis : 28.38 FEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/579/SR_125_1999-2001_28.38.PNG)
1 |
Phare avant |
||||||
|
1 |
Phare avant; |
||||||
|
2 |
Câblage feu AV |
||||||
|
3 |
AP8224216 - RESSORT Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
AP8127002 - CABLAGE FEU Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
CLIGNOTANT AVANT DROIT ORIGINE PIAGGIO APRILIA 50 SR 1997>2000, 125 LEONARDO 1996>1998 -AP8124540- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/7/5/2/2/img/47522.jpg)
6 |
CLIGNOTANT AVANT GAUCHE ORIGINE PIAGGIO APRILIA 50 SR 1997>2000, 125 LEONARDO 1996>1998 -AP8124541- Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
AP8212699 - CLIGNOT.AV.DR./ARR.GA. Plus d'informationsQuantité requise : 1 |
||||||
|
8 |
AP8212700 - CLIGNOT.AV.GA./ARR.DR * Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
AP8224245 - FEU ARRIERE Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
AP8124472 - PORTE-AMPOULE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/8/img/71848.jpg)
11 |
VIS CRUCIFORME (4.2X20) TARAUD ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150270 Plus d'informationsQuantité requise : 4 |
||||||
|
12 |
AP8124543 - GLACE CLIGN. AV D Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
AP8124544 - GLACE CLIGN. AV G Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
CABOCHON DE FEU ARRIERE ORIGINE PIAGGIO APRILIA 50 SR H2O -AP8224256- Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
AP8212934 - VIS TARAUD BLANCHE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/5/0/img/71850.jpg)
16 |
VIS BTR (5X16) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150280 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/3/img/71963.jpg)
17 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP81523066 Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
Rallonge clignotant; |
||||||
|
18 |
AP8149302 - RALLONGE CLIGNOTANT Plus d'informationsQuantité requise : 2 |
||||||
|
18 |
Rallonge clignotant; |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/6/img/71876.jpg)
19 |
VIS CRUCIFORME (3.9X14) TARAUD CARENAGE INOX ORIGINE PIAGGIO COMMUN A TOUTE LA GAMME MOTO -AP8150413- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/2/9/1/img/56291.jpg)
20 |
CABOCHON CLIGNOTANT ORIGINE APRILIA 50-125-250 RS 2005< -AP8212680- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/7/2/9/5/img/57295.jpg)
21 |
AP8224196 - FEU DE PLAQUE Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP81523066 Plus d'informationsQuantité requise : 2 |
||||||
|
23 |
|
||||||
|
23 |
|
||||||
|
24 |
|
||||||
|
25 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/2/7/img/65727.jpg)
26 |
AMPOULE/LAMPE 12V 21/5W BAY15D / P21/5 ORIGINE PIAGGIO COMMUN A LA GAMME -129953- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/9/4/0/8/img/139408.jpg)
27 |
AMPOULE/LAMPE 12V 5W WEDGE T10 BLANCHE ORIGINE PIAGGIO COMMUN A LA GAMME -2920225- Plus d'informationsQuantité requise : 1 |
