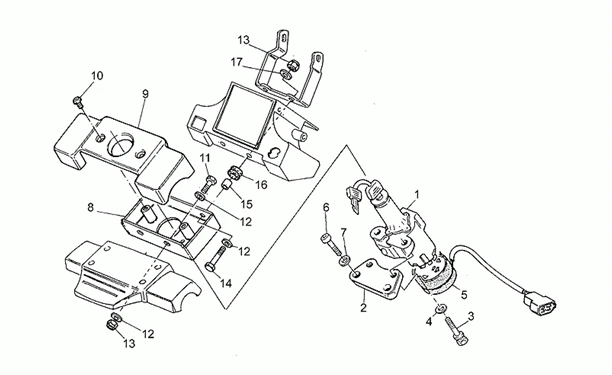

Chassis : 33.02 BLOC DÉMARREUR-BLOC
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/521/Strada_1000_1993-1994_33.02.PNG)
1 |
Bloc démarreur-bloc |
||||||
|
2 |
SUPPORT |
||||||
|
3 |
GU97260425 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
4 |
GU95000208 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
FAISCEAU PRINCIPAL |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/3/1/5/9/img/133159.jpg)
6 |
VIS BTR (8X35) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98680435 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
GU95004208 - RONDELLE Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
PLAQUE |
||||||
|
9 |
Couvercle |
||||||
|
10 |
GU98230610 - VIS Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/9/2/7/img/132927.jpg)
11 |
VIS TH (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -GU98084314 Plus d'informationsQuantité requise : 2 |
||||||
|
12 |
GU95000206 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
|
13 |
GU92630206 - ECROU M6X1 Plus d'informationsQuantité requise : 4 |
||||||
|
14 |
GU98054325 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
GU91180617 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/7/0/img/132370.jpg)
16 |
CAOUTCHOUC (8X18) ORIGINE MOT GUZZI -GU91551167 Plus d'informationsQuantité requise : 2 |
||||||
|
17 |
GU95100139 - RONDELLE Plus d'informationsQuantité requise : 2 |
