Eclatés de véhicule - APRILIA TUAREG 660 Rally E5+ 2025 (EMEA-GSO)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

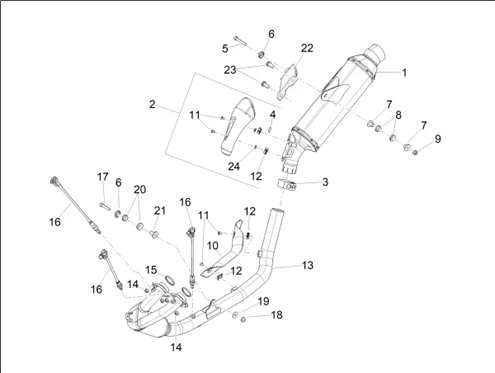

Moteur : 03.33 SILENCIEUX
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1298/Tuareg_660_Rally_E5_2025_(EMEA-GSO)_03.33.png)
1 |
2B013310 - SILENCIEUX Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2B014928 - COMPLETE SILENCER COVER Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
2B010301 - COLLIER Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
2B013314 - CAPUCHON - PRODUIT NON REMPLACEMENT NON DÉFINI Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/4/9/img/71849.jpg)
5 |
VIS BTR (8X50) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150277 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/6/7/4/3/img/46743.jpg)
6 |
DOUILLE ENTRETOISE DE SILENCIEUX ORIGINE APRILIA RSV4 -AP8121199 Plus d'informationsQuantité requise : 2 |
||||||
|
7 |
AP8121332 - DOUILLE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/7/6/8/img/71768.jpg)
8 |
DOUILLE CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8144558- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
9 |
ECROU BRIDE AUTOBLOQUANT/NYLSTOP (M8) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152300- Plus d'informationsQuantité requise : 1 |
||||||
|
10 |
2B010903 - MANIFOLD HEAT SHIELD Plus d'informationsQuantité requise : 1 |
||||||
|
11 |
2B011260 - MROUNDED HEAD WITH HEXAGON SOCKET M6X12 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/0/9/img/66009.jpg)
12 |
ECROU TOLE (M6) ORIGINE PIAGGIO COMMUN A LA GAMME -254485- Plus d'informationsQuantité requise : 4 |
||||||
|
13 |
2B014586 - COLLECTEUR ECHAP. Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/9/img/66509.jpg)
14 |
ECROU ECHAPPEMENT SUR CULASSE MAXISCOOTER 125-250 X8, X-EVO, VESPA GTS, MP3, 125 LIBERTY, VESPA LX, PRIMAVERA/GILERA 125-250-300 NEXUS/APRILIA 125-250-300 ATLANTIC -436947- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/2/1/4/2/8/5/img/214285.jpg)
15 |
JOINT ECHAPPEMENT EN SORTIE DE CULASSE ORIGINE PIAGGIO APRILIA 1000-1100 RSV-4 2011>, TUONO V4/MOTO-GUZZI 750 V7, 850 V85, V9 -2B012220- Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
1A024117 - SONDE LAMDA Plus d'informationsQuantité requise : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
17 |
VIS BTR (8X40) ORIGINE PIAGGIO COMMUN A LA GAMME -149104- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/9/2/5/img/70925.jpg)
18 |
ECROU BRIDE (8X1.25) ORIGINE PIAGGIO COMMUN A LA GAMME -967363- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/1/0/img/71810.jpg)
19 |
RONDELLE PLATE (8.5X24X2) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150018- Plus d'informationsQuantité requise : 1 |
||||||
|
20 |
DOUILLE CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8144558- Plus d'informationsQuantité requise : 2 |
||||||
|
21 |
2B009827 - DOUILLE Plus d'informationsQuantité requise : 1 |
||||||
|
22 |
2B010144 MUFFLER BRACKET Plus d'informationsQuantité requise : 1 |
||||||
|
23 |
2B011260 - MROUNDED HEAD WITH HEXAGON SOCKET M6X12 Plus d'informationsQuantité requise : 2 |
||||||
|
24 |
2B011259 - DOUILLE Plus d'informationsQuantité requise : 2 |
