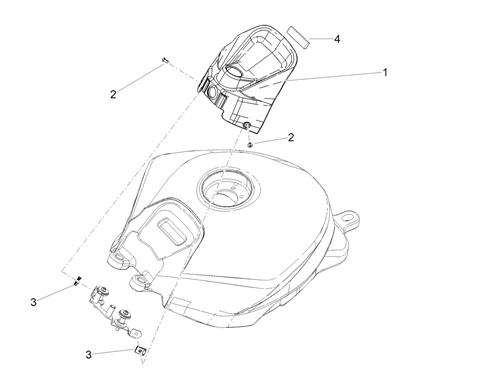

Carrosserie : 02.09 COUVRE-RÉSERVOIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/976/Tuono_660_4T_8V_E5_ABS_2021_(EMEA)_02.09.png)
1 |
2B006630 HABILLAGE RESERVOIR Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
COUVERCLE RESERVOIR ORIGINE APRILIA 660 RS E5+ 2025 (BLUE MARLIN) -2B006630000XR4 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/0/9/6/1/img/50961.jpg)
2 |
VIS BTR TETE BOMBEE (5X10) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8152171 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
3 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/0/9/2/5/img/40925.jpg)
4 |
ADHESIF MOUSSE ORGINE APRILIA COMMUN A LA GAMME -860447 Plus d'informationsQuantité requise : 1 |
