Châssis/coque : 01.01 CHÂSSIS/COQUE

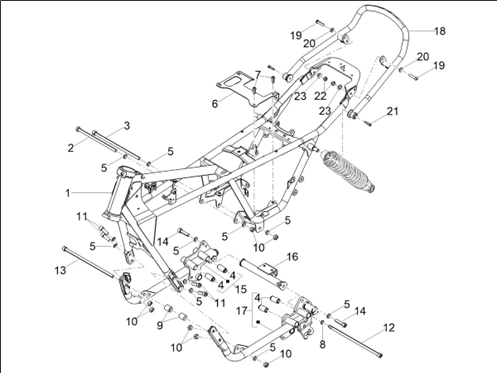

/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1302/V7_Special_850_E5_ABS_2025_(EMEA)_01.01.png)
1 |
2B013591 - CHASSIS Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
GU98110199 - PIVOT M10X205 Plus d'informationsQuantité requise : 1 |
||||||
|
3 |
2B001035 - PERNO M10X234 Plus d'informationsQuantité requise : 1 |
||||||
|
4 |
2B007415 SILENT BLOCK Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/6/8/2/img/132682.jpg)
5 |
RONDELLE PLATE (10,2X18X2) ORIGINE PIAGGIO COMMUN A LA GAMME -GU95008210 Plus d'informationsQuantité requise : 11 |
||||||
|
6 |
2B013407 - PLAQUE DE LIAISON DU CADRE Plus d'informationsQuantité requise : 1 |
||||||
|
7 |
2B002311 - VIS M8X20 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/2/9/img/71929.jpg)
8 |
RONDELLE ENGRENAGE POMPE A HUILE (10,5X16X1) ORIGINE PIAGGIO COMMUN A LA GAMME MOTO-GUZZI -AP8152220- Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
GU19017000 - BAGUE Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/5/1/0/img/132510.jpg)
10 |
ECROU (M10X1,5) ORIGINE PIAGGIO COMMUN A LA GAMME -GU92630510 Plus d'informationsQuantité requise : 7 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/3/6/img/71836.jpg)
11 |
VIS BTR (10X30) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150195 Plus d'informationsQuantité requise : 4 |
||||||
|
12 |
2B002817 - PIVOT Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
2B001612 - PERNO M10X199 Plus d'informationsQuantité requise : 1 |
||||||
|
14 |
AP8150048 - VIS Plus d'informationsQuantité requise : 2 |
||||||
|
15 |
2B013174 - BRAS BERCEAU D. Plus d'informationsQuantité requise : 1 |
||||||
|
16 |
2B012500 - TRAVERSE CHASSIS Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
2B013161 - BRAS BERCEAU G. Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
2B007486 REAR LUGGAGE RACK Plus d'informationsQuantité requise : 1 |
||||||
|
19 |
GU98690435 - VIS M8X35 Plus d'informationsQuantité requise : 2 |
||||||
|
20 |
GU950053106 - WASHER 8.4X18X2 INOX AISI 304 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/7/9/5/0/img/127950.jpg)
21 |
VIS BTR (6X35) AVEC FREIN FILET ORIGINE PIAGGIO COMMUN A LA GAMME -2B002195- Plus d'informationsQuantité requise : 2 |
||||||
|
22 |
GU92630108 - ECROU Plus d'informationsQuantité requise : 2 |
||||||
|
23 |
GU91120806 - ENTRETOISE Plus d'informationsQuantité requise : 2 |
