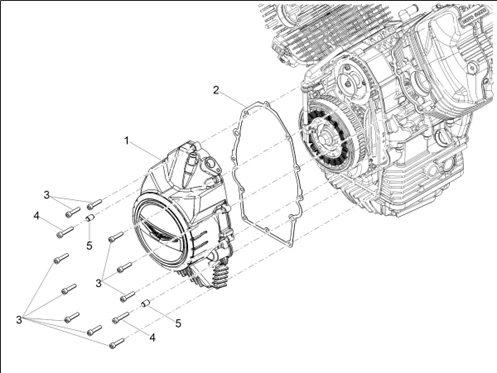

Moteur : 03.27 CARTER DE VOLANT
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1304/V7_Stone_850_E5_ABS_2025_(EMEA)_03.27.png)
Rechercher
1 |
1A016407 GENERATOR COVER WITH I.P. Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
1A024799 - COVER GASKET Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/9/1/6/8/img/69168.jpg)
3 |
VIS BTR (10X25) ORIGINE PIAGGIO COMMUN A LA GAMME -840893 Plus d'informationsQuantité requise : 10 |
||||||
|
4 |
GU98682330 - VIS M6X30 Plus d'informationsQuantité requise : 2 |
||||||
|
5 |
GU19002020 - BAGUE 6,6X9X13 Plus d'informationsQuantité requise : 2 |
