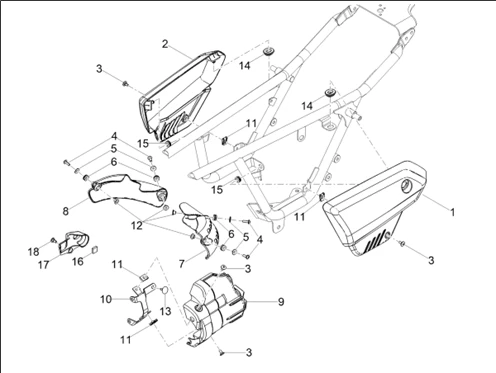

Carrosserie : 02.10 CARROSSERIE CENTRALE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/1187/V7_Stone_850_E5_ABS_SPECIAL_EDITION_2023_(EMEA)_02.10.png)
1 |
2H005232000XN2 - L.H. BODY SIDE Plus d'informationsQuantité requise : 1 |
||||||
|
1 |
2B007461 LEFT BODY SIDE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2H005231000XN2 - R.H. BODY SIDE Plus d'informationsQuantité requise : 1 |
||||||
|
2 |
2B007462 RIGHT SIDE BODY Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/9/4/img/71894.jpg)
3 |
VIS BTR TETE BOMBEE (5X9) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8150500- Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/0/8/3/7/img/70837.jpg)
4 |
VIS BTR (5X12) DE CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME MOTO APRILIA ET MOTO-GUZZI V7-V9 -896174- Plus d'informationsQuantité requise : 4 |
||||||
|
5 |
GU95005305 - RONDELLE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/4/9/7/7/7/img/49777.jpg)
6 |
CAOUTCHOUC DE CARROSSERIE ORIGINE MOTO GUZZI V7 -AP8144593 Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/8/5/4/img/140854.jpg)
7 |
CACHE/COUVERCLE INJECTEUR GAUCHE ORIGINE MOTO GUZZI V7, V9 2017> -2B002621- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/8/5/5/img/140855.jpg)
8 |
CACHE/COUVERCLE INJECTEUR DROIT ORIGINE MOTO GUZZI V7, V9 2017> -2B002622- Plus d'informationsQuantité requise : 1 |
||||||
|
9 |
2B006168 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/0/9/4/8/img/140948.jpg)
10 |
SUPPORT DE CACHE DEMARREUR ORIGINE PIAGGIO MOTO-GUZZI 750 V7 2018> 900 V9 2018> -2B002937 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/1/7/4/img/71174.jpg)
11 |
ECROU TOLE (M5) ORIGINE PIAGGIO COMMUN A LA GAMME -AP8102375 Plus d'informationsQuantité requise : 8 |
||||||
|
12 |
876859 - ENTRETOISE Plus d'informationsQuantité requise : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/3/8/3/img/71383.jpg)
13 |
BOUCHON CAOUTCHOUC ORIGINE PIAGGIO COMMUN A LA GAMME -AP8120001 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/8/5/0/img/65850.jpg)
14 |
TAMPON/SILENCBLOC DE CARENAGE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -1B000888- Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/3/2/3/6/1/img/132361.jpg)
15 |
CAOUTCHOUC PASSE FIL (8X18) ORIGINE PIAGGIO COMMUN A LA GAMME -GU91551086 Plus d'informationsQuantité requise : 2 |
||||||
|
16 |
AP8117003 - EPONGE ADHESIV 15X5 (CF. Plus d'informationsQuantité requise : 1 |
||||||
|
17 |
2B006091 - COUVERCLE Plus d'informationsQuantité requise : 1 |
||||||
|
18 |
2B003422 - VIS Plus d'informationsQuantité requise : 1 |
