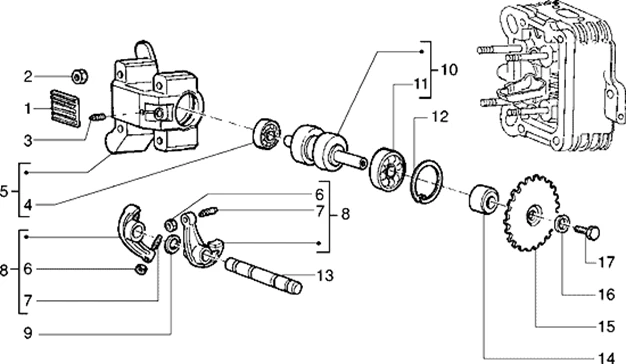

Moteur : T6 ENSEMBLE SUPPORT BALANCIERS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/710/Vespa_ET4_125_1998-2005_T6.PNG)
1 |
SILENBLOC |
||||||
|
2 |
434078 - ECROU Plus d'informationsQuantité requise : 4 |
||||||
|
3 |
VIS |
||||||
|
4 |
288259 - ROULEMENT Plus d'informationsQuantité requise : 1 |
||||||
|
5 |
4366675 - SUPPORT Plus d'informationsQuantité requise : 1 |
||||||
|
6 |
ECROU |
||||||
|
7 |
436504 - VIS REGLAGE Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
288747T - CULBUTEUR CPLT Plus d'informationsQuantité requise : 2 |
||||||
|
9 |
RONDELLE |
||||||
|
10 |
4363645 - ARBRE A CAMES EX 4363645 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/5/2/img/66552.jpg)
11 |
ROULEMENT (12X32X10) ORIGINE PIAGGIO COMMUN A LA GAMME -478261 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/2/img/63822.jpg)
12 |
CLIPS/CIRCLIPS ORIGINE PIAGGIO COMMUN A LA GAMME -006632 Plus d'informationsQuantité requise : 1 |
||||||
|
13 |
AXE CULBUTEUR |
||||||
|
14 |
436366 - ENTRETOISE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/4/6/4/img/66464.jpg)
15 |
COURONNE DISTRIBUTION COTE ARBRE A CAMES ORIGINE PIAGGIO 50 FLY 4T, ZIP 4T, VESPA LX 4T, LIBERTY 4T, PRIMAVERA 4T -434943- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/5/0/1/img/66501.jpg)
16 |
RONDELLE RESSORT (6.4X20X2) ORIGINE PIAGGIO COMMUN A LA GAMME -436695 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
17 |
VIS BRIDE TH (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -B016426 Plus d'informationsQuantité requise : 1 |
