Eclatés de véhicule - VESPA VESPA S 125 4T 3V ie 2012
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/vespa.svg)

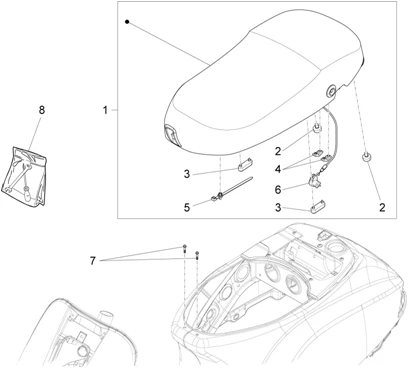

Châssis - parties plastiques - carrosseries : 02.39 SELLE/SIEGES - TROUSSE À OUTILS
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/224/Vespa_S_125_4T_3V_ie_2012_02.39.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/2/7/4/img/88274.jpg)
1 |
SELLE ORIGINE PIAGGIO VESPA 125 S 2007>2012, LX 50 2009 -65428500AN Plus d'informationsQuantité requise : 1 |
||||||
1 |
67329500C1 - SELLE Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/7/1/5/7/img/67157.jpg)
2 |
TAMPON DE SELLE ORIGINE PIAGGIO COMMUN A LA GAMME MAXISCOOTER -577492 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/2/img/66292.jpg)
3 |
TAMPON SELLE ORIGINE PIAGGIO COMMIN A LA GAMME -296456 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/2/9/4/img/66294.jpg)
4 |
PONTET DOIGT DE SERRURE ORIGINE PIAGGIO COMMUN A LA GAMME -296743 Plus d'informationsQuantité requise : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/3/0/7/img/66307.jpg)
5 |
COLLIER ORIGINE PIAGGIO COMMUN A LA GAMME -298729 Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/8/8/1/0/7/img/88107.jpg)
6 |
CABLE/COMMANDE/TRANSMISSION OUVERTURE DE SELLE ORIGINE PIAGGIO 50-125 VESPA LX 2005, VESPA S 2007> -653994- Plus d'informationsQuantité requise : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/7/0/6/img/72706.jpg)
7 |
VIS BRIDE TH (6X14) ORIGINE PIAGGIO COMMUN A LA GAMME -B016426 Plus d'informationsQuantité requise : 2 |
||||||
|
8 |
649690 - TROUSSE OUTILS Plus d'informationsQuantité requise : 1 |
