Vehicle Exploded View - MOTO-GUZZI SPORT 1200 8V 2008-2013
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/motoguzzi.svg)

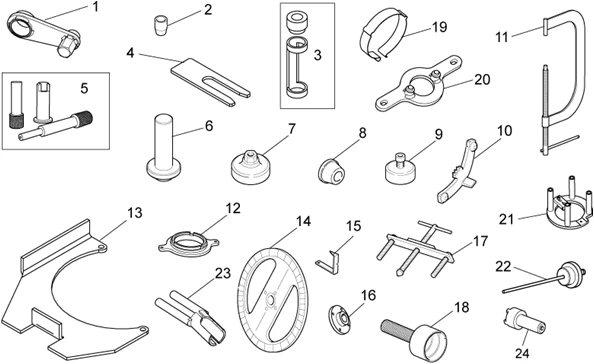

Outillage special : 36.63 SPECIFIC TOOLS I
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/461/1200_Sport_8V_2008-2013_36.63.PNG)
1 |
020677Y - ATT.TENSIONE CINGHIA ALTERNATORE More informationQuantity required : 1 |
||||||
|
2 |
GU05911730 - CONE D'INTROD.COUVERCLE AVANT More informationQuantity required : 1 |
||||||
|
3 |
AP9100838 - ATTREZZO SPINGIMOLLA VALVOLA More informationQuantity required : 1 |
||||||
|
4 |
020716Y - OUTIL More informationQuantity required : 1 |
||||||
|
5 |
020470Y - OUTIL More informationQuantity required : 1 |
||||||
|
6 |
GU05927230 - JET DE MONTAGE JOINT DISTR. More informationQuantity required : 1 |
||||||
|
7 |
GU01929100 - COPERCHIO COPPA E FILTRO More informationQuantity required : 1 |
||||||
|
8 |
GU12912000 - OUT.MONT.BRIDE VOLANT More informationQuantity required : 1 |
||||||
|
9 |
GU14927100 - OUT.MONT.JOINT BRIDE VOLANT More informationQuantity required : 1 |
||||||
|
10 |
GU12911801 - OUT.BLOCAGE VOL./COUR.D'EMAR. More informationQuantity required : 1 |
||||||
|
11 |
AP8140179 - BOW FOR VALVE ASSY&DISASSY; More informationQuantity required : 1 |
||||||
|
12 |
020672Y - CENTRA E SPINGI MOLLA FRIZIONE More informationQuantity required : 1 |
||||||
|
13 |
GU05902530 - SUPPORT POUR CARTER VITESSES More informationQuantity required : 1 |
||||||
|
14 |
Disque contr.calage distr/allu |
||||||
|
15 |
Aiguille contr.cal.distr.allum |
||||||
|
16 |
020673Y - BOCCOLO PER DISCO GRADUATO FASATURA More informationQuantity required : 1 |
||||||
|
17 |
GU12913600 - OUT.MONT.BRIDE VOLANT More informationQuantity required : 1 |
||||||
|
18 |
GU19927100 - OUT.MONT.JOINT BRIDE VOLANT More informationQuantity required : 1 |
||||||
|
19 |
020674Y - STRINGI FASCE 95 MM More informationQuantity required : 1 |
||||||
|
20 |
020675Y - FERMO INGRANAGGIO ALBERO DI SERVIZIO More informationQuantity required : 1 |
||||||
|
21 |
020676Y - ATT.PORTACOMPARATORE SPESS. GUARN TESTA More informationQuantity required : 1 |
||||||
|
22 |
020678Y - ATTREZZO VERIFICA ASTA FRIZIONE More informationQuantity required : 1 |
||||||
|
23 |
020689Y - PINZA ESTRAZIONE CAPPUCCIO CANDELA More informationQuantity required : 1 |
||||||
|
24 |
GU14912603 - CLE More informationQuantity required : 1 |
