Vehicle Exploded View - APRILIA AMICO 50 1996-1998 APRILIA

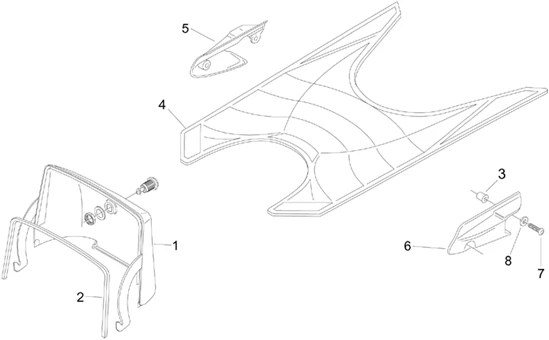

Chassis : 28.09 CARROSSERIE CENTRALE I
Carrosserie centrale i
Search
Couv. porte-objects, noir;

1
P2R reference P2R reference
Maker reference Maker reference AP8230714

Couv. porte-objects, noir;

Couv. porte-objects, gris;

1
P2R reference P2R reference
Maker reference Maker reference AP8238611

Couv. porte-objects, gris;

Couv. porte-objects, bleu;

1
P2R reference P2R reference
Maker reference Maker reference AP8239121

Couv. porte-objects, bleu;

AP8220407 - JOINT COFFRE NOIR 7X8

2
P2R reference P2R reference 56879
Maker reference Maker reference AP8220407

AP8220407 - JOINT COFFRE NOIR 7X8

More information

Quantity required : 1

NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531-

3
P2R reference P2R reference 71401
Maker reference Maker reference AP8120531

NUT - WITH RUBBER INSERT "PIAGGIO GENUINE PART" COMMON TO THE RANGE MOTO APRILIA ET MOTO-GUZZI -AP8120531-

More information

Quantity required : 4

Tapis;

4
P2R reference P2R reference
Maker reference Maker reference AP8231323

Tapis;

Tapis gris;

4
P2R reference P2R reference
Maker reference Maker reference AP8238577

Tapis gris;

Tapis bleu;

4
P2R reference P2R reference
Maker reference Maker reference AP8239118

Tapis bleu;

Couvre-étrier r-p D;

5
P2R reference P2R reference
Maker reference Maker reference AP8231706

Couvre-étrier r-p D;

Couvre-étrier r-p G;

6
P2R reference P2R reference
Maker reference Maker reference AP8231707

Couvre-étrier r-p G;

AP8152269 - VIS

7
P2R reference P2R reference 71936
Maker reference Maker reference AP8152269

AP8152269 - VIS

More information

Quantity required : 4

AP8150177 - RONDELLE

8
P2R reference P2R reference 71832
Maker reference Maker reference AP8150177

AP8150177 - RONDELLE

More information

Quantity required : 4
