Vehicle Exploded View - APRILIA AMICO 50 1996-1998
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/aprilia.svg)

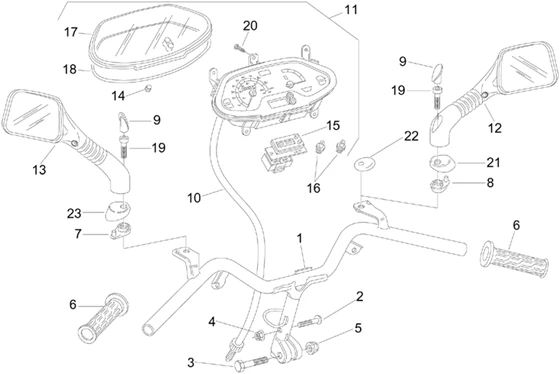

Chassis : 28.19 GUIDON-TABLEAU DE BORD
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/235/Amico_50_1996-1998_28.19.PNG)
1 |
AP8218160 - GUIDON AVEC CATAPHORESE; More informationQuantity required : 1 |
||||||
|
2 |
AP8150290 - VIS More informationQuantity required : 1 |
||||||
|
3 |
AP8150323 - VIS More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/5/9/img/71959.jpg)
4 |
NUT - SAFETY NUT "PIAGGIO GENUINE PART" COMMON TO THE RANGE APRILIA /MOTO-GUZZI -AP8152300- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/9/6/0/img/71960.jpg)
5 |
AP8152301 - ECROU AUTOBLOQU. More informationQuantity required : 1 |
||||||
|
6 |
GRIPS(PAIR) "PIAGGIO GENUINE PART" APRILIA 50 RALLYE, AMICO, GULLIVER, SR 1996> -AP8218275- More informationQuantity required : 1 |
||||||
|
6 |
Couple manettes, bleu; |
||||||
|
7 |
Base rétroviseur G |
||||||
|
8 |
Base rétroviseur D |
||||||
|
9 |
|
||||||
|
9 |
AP8202071 - BOUCHON RETRO DTE+GCHE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/6/5/6/0/img/56560.jpg)
10 |
TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" APRILIA 50 AMICO -AP8214169 More informationQuantity required : 1 |
||||||
|
11 |
Tableau de bord; |
||||||
|
11 |
Tableau de bord |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/5/5/4/1/1/img/55411.jpg)
12 |
MIRROR- RIGHT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201975 More informationQuantity required : 1 |
||||||
|
13 |
MIRROR- LEFT "PIAGGIO GENUINE PART" APRILIA 50 SR, AMICO, GULLIVER -AP8201976- More informationQuantity required : 1 |
||||||
|
14 |
AP8212405 - CAOUTCHOUC HORLOGE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/2/1/8/7/img/72187.jpg)
15 |
DIGITAL CLOCK "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, FLY, LIBERTY, 125-250-300 VESPA GTS, X7/APRILIA 125-250-300 ATLANTIC, LEONARDO -AP8212406- More informationQuantity required : 1 |
||||||
|
16 |
AP8212407 - PORTE-AMPOULE COMPLET More informationQuantity required : 2 |
||||||
|
17 |
Vitre tableau de bord |
||||||
|
18 |
AP8220555 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/7/4/7/img/65747.jpg)
19 |
SCREW - (8X40) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -149104- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/7/1/8/7/9/img/71879.jpg)
20 |
AP8150421 - VIS TARAUD POUR PLAST. INOX More informationQuantity required : 5 |
||||||
|
21 |
Caoutchouc miroir droite |
||||||
|
22 |
Bouchon rétrovis.D |
||||||
|
23 |
Caoutchouc |
