Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 E4 2017-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

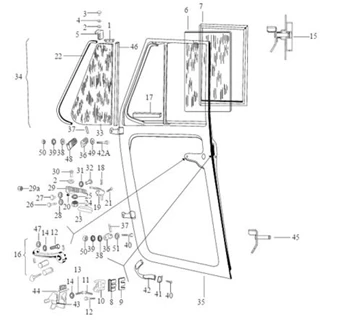

Châssis - parties plastiques - carrosseries : 02.07 PORTIÈRES AVANT - VITRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/815/Ape_Classic_400_E4_2017-2018_02.07.png)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/5/0/2/img/110502.jpg)
1 |
163660 - JOINT More informationQuantity required : 1 |
||||||
1 |
183077 - JOINT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
2 |
006965 - RONDELLE More informationQuantity required : 2 |
||||||
|
2 |
109329 - RONDELLE More informationQuantity required : 4 |
||||||
|
3 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/2/img/63802.jpg)
4 |
006078 - RONDELLE S00607800 More informationQuantity required : 2 |
||||||
|
5 |
108800 - PIVOT More informationQuantity required : 1 |
||||||
|
5 |
152025 - PIVOT More informationQuantity required : 1 |
||||||
|
6 |
163661 - TRANSPARENT More informationQuantity required : 2 |
||||||
|
7 |
163663 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/2/4/4/img/111244.jpg)
8 |
140603 - PLAQUE More informationQuantity required : 2 |
||||||
|
9 |
193724 - PLAQUETTE EPAISSEUR More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/5/2/4/img/113524.jpg)
10 |
182662 - BLOC SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/2/8/4/img/116284.jpg)
10 |
182663 - BLOC DE SERRURE MPF/MPV More informationQuantity required : 1 |
||||||
|
11 |
569156 - VIS More informationQuantity required : 2 |
||||||
|
12 |
569157 - VIS More informationQuantity required : 2 |
||||||
|
13 |
000702 - VIS S00070200 More informationQuantity required : 3 |
||||||
|
14 |
|
||||||
|
15 |
182661R - SERRURE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/4/2/8/0/8/img/142808.jpg)
15 |
182660R - SERRURE More informationQuantity required : 1 |
||||||
|
16 |
B024733 - POIGNEE G. More informationQuantity required : 1 |
||||||
|
16 |
B024734 - POIGNÉE DRT. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/9/0/img/111490.jpg)
17 |
163659 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/6/0/img/63860.jpg)
18 |
008808 - EPINGLE S00880800 More informationQuantity required : 2 |
||||||
|
19 |
B003865 - LEVIER More informationQuantity required : 1 |
||||||
|
19 |
B003864 - LEVIER More informationQuantity required : 1 |
||||||
|
20 |
116971 - GARNITURE ABOLIE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/8/7/img/65387.jpg)
21 |
SCREW - (2,9X9,5) "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -015727- More informationQuantity required : 2 |
||||||
|
22 |
163784 - JOINT More informationQuantity required : 2 |
||||||
|
23 |
182654 - EMBOUT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/3/img/65463.jpg)
24 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 2 |
||||||
|
25 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/9/3/img/111393.jpg)
26 |
604558 - POULIE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/1/7/img/111917.jpg)
27 |
108804 - VIS More informationQuantity required : 4 |
||||||
|
28 |
013935 - RONDELLE S01393500 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/8/4/img/110384.jpg)
29 |
108801 - EQUERRE More informationQuantity required : 1 |
||||||
|
29 |
109263 - EQUERRE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/0/8/4/img/111084.jpg)
29 |
NUT - "PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTERS AND APE -804457 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/4/img/65634.jpg)
30 |
031058 - VIS S03105800 More informationQuantity required : 2 |
||||||
|
31 |
006177 - RONDELLE S00617700 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/9/0/6/img/111906.jpg)
32 |
108805 - VIS More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/3/9/8/img/110398.jpg)
32 |
604812 - VIS More informationQuantity required : 1 |
||||||
|
33 |
163665 - TRANSPARENT More informationQuantity required : 2 |
||||||
|
34 |
163667 - DEFLECTEUR More informationQuantity required : 1 |
||||||
|
34 |
1636665 - DEFLECTEUR D More informationQuantity required : 1 |
||||||
|
35 |
B002847 - PORTE DROITE More informationQuantity required : 1 |
||||||
|
35 |
B002848 - PORTE GAUCHE More informationQuantity required : 1 |
||||||
|
36 |
632238 - DOOR HINGE ASSLY UPPER More informationQuantity required : 4 |
||||||
|
37 |
008847 - AXE S00884700 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/6/4/img/65364.jpg)
38 |
MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861- More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/3/4/9/img/65349.jpg)
39 |
012540 - RONDELLE More informationQuantity required : 4 |
||||||
|
40 |
|
||||||
|
41 |
|
||||||
|
42 |
568148R - COURROIE DE RETENUE More informationQuantity required : 1 |
||||||
|
42 |
568692 - VIS More informationQuantity required : 4 |
||||||
|
43 |
|
||||||
|
44 |
604690 - BOUCHON More informationQuantity required : 1 |
||||||
|
45 |
|
||||||
|
46 |
163782 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/0/0/img/63800.jpg)
47 |
006018 - RONDELLE S00601800 More informationQuantity required : 2 |
||||||
|
48 |
605389 - CHARNIERE More informationQuantity required : 2 |
||||||
|
49 |
140728 - RONDELLE 8.5 X 24 X 3 More informationQuantity required : 2 |
||||||
|
50 |
NUT - M8X6,5 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020108- More informationQuantity required : 4 |
||||||
|
51 |
MULTIPURPOSE WASHER (8,2X20X2,2)"PIAGGIO GENUINE PART" COMMON TO THE RANGE MAXISCOOTER -013861- More informationQuantity required : 1 |
