Vehicle Exploded View - PIAGGIO VU APE CLASSIC 0 Ape Classic 400 E4 2017-2018
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

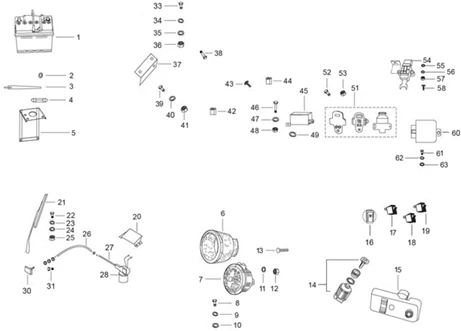

Installation électrique : 06.10 DISPOSITIFS ÉLECTRIQUES
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/815/Ape_Classic_400_E4_2017-2018_06.10.png)
1 |
587650R - BATTERIE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/5/img/63775.jpg)
2 |
003054 - RONDELLE S00305400 More informationQuantity required : 2 |
||||||
|
3 |
632415 - COURROIE More informationQuantity required : 1 |
||||||
|
4 |
|
||||||
|
5 |
569166 - SUPPORT More informationQuantity required : 1 |
||||||
|
6 |
645041 - BOUCHON More informationQuantity required : 1 |
||||||
|
7 |
B041000R - AVERTISSEUR More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/4/img/65644.jpg)
8 |
031116 - BOULON More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
9 |
003058 - RONDELLE S00305800 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/8/img/65418.jpg)
10 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 1 |
||||||
|
11 |
WASHER (13,75X8,15X4,5) "PIAGGIO GENUINE PART" COMMUN A L'ENSEMBLE DE LA GAMME -016408- More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/0/img/65460.jpg)
12 |
020105 - ECROU S02010500 More informationQuantity required : 1 |
||||||
|
13 |
|
||||||
|
14 |
B024739 - CLE KIT More informationQuantity required : 1 |
||||||
|
15 |
TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" APE, CALESSINO -B073366- More informationQuantity required : 1 |
||||||
|
16 |
645153R - ALLUME CIGARE More informationQuantity required : 1 |
||||||
|
17 |
B003727 - RELAIS More informationQuantity required : 1 |
||||||
|
18 |
587670R - INTERRUPTEUR More informationQuantity required : 1 |
||||||
|
19 |
B076567 - INTERRUPTEUR ESSUIS GLACE More informationQuantity required : 1 |
||||||
|
20 |
569166 - SUPPORT More informationQuantity required : 1 |
||||||
|
21 |
632292 - BALAI D'ESSUIE-GLACES More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/9/img/65639.jpg)
22 |
031088 - VIS S03108800 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
23 |
003056 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
24 |
016406 - RONDELLE S01640600 More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
25 |
020106 - ECROU S02010600 More informationQuantity required : 6 |
||||||
|
26 |
604506 - TUYAU More informationQuantity required : 1 |
||||||
|
27 |
B076573 - TUYAU More informationQuantity required : 1 |
||||||
|
28 |
B076574 - MOTEUR BALAI D'ESSUIEGLACES More informationQuantity required : 1 |
||||||
|
30 |
B076304 - WHEEL BOX ASSLY More informationQuantity required : 1 |
||||||
|
31 |
661925 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/4/img/65634.jpg)
33 |
031058 - VIS S03105800 More informationQuantity required : 2 |
||||||
|
34 |
003055 - RONDELLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/3/7/img/63837.jpg)
35 |
006965 - RONDELLE More informationQuantity required : 2 |
||||||
|
36 |
020105 - ECROU S02010500 More informationQuantity required : 2 |
||||||
|
37 |
660109 - PLAQUETTE More informationQuantity required : 1 |
||||||
|
38 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/2/img/65632.jpg)
39 |
031056 - VIS More informationQuantity required : 2 |
||||||
|
40 |
006965 - RONDELLE More informationQuantity required : 2 |
||||||
|
41 |
020105 - ECROU S02010500 More informationQuantity required : 2 |
||||||
|
42 |
|
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/3/img/65403.jpg)
43 |
015911 - VIS S01591100 More informationQuantity required : 1 |
||||||
|
44 |
567706 - FUSIBLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/3/3/5/4/img/113354.jpg)
45 |
B023727R - RELAIS More informationQuantity required : 1 |
||||||
|
46 |
031057 - BOULON S03105700 More informationQuantity required : 2 |
||||||
|
47 |
|
||||||
|
48 |
020105 - ECROU S02010500 More informationQuantity required : 2 |
||||||
|
49 |
003055 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/7/9/img/111479.jpg)
51 |
567498R - INTERRUPTEUR STOP More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/0/8/img/65408.jpg)
52 |
015996 - VIS More informationQuantity required : 2 |
||||||
|
52 |
568750 - VIS More informationQuantity required : 2 |
||||||
|
53 |
020105 - ECROU S02010500 More informationQuantity required : 2 |
||||||
|
54 |
B076115 - STARTER SAFETY SWITCH ASSLY. More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/4/img/65414.jpg)
55 |
WASHER (4,2X7,6X0,9) "PIAGGIO GENUINE PART" COMMON TO THE RANGE -016404 More informationQuantity required : 2 |
||||||
|
56 |
003054 - RONDELLE S00305400 More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/9/img/65459.jpg)
57 |
020104 - ECROU S02010400 More informationQuantity required : 2 |
||||||
|
58 |
B001503 - VIS More informationQuantity required : 2 |
||||||
|
60 |
B023726R - INTERMITTENCE More informationQuantity required : 1 |
||||||
|
61 |
031088 - VIS S03108800 More informationQuantity required : 1 |
||||||
|
62 |
003056 - RONDELLE More informationQuantity required : 1 |
||||||
|
63 |
016406 - RONDELLE S01640600 More informationQuantity required : 1 |
