Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 0 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

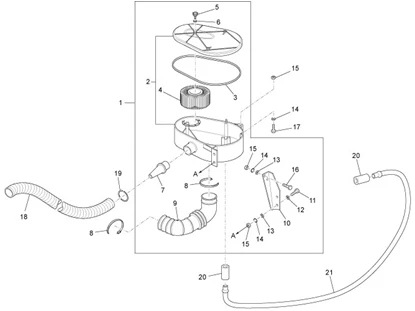

Moteur : 01.45 FILTRE À AIR
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_01.45.PNG)
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/5/8/2/img/121582.jpg)
1 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" APE TM703 -263599 More informationQuantity required : 1 |
||||||
|
2 |
AIR FILTER HOUSING "PIAGGIO GENUINE PART" APE TM703 -263599 More informationQuantity required : 1 |
||||||
3 |
JOINT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/1/7/9/img/115179.jpg)
4 |
AIR FILTER "PIAGGIO GENUINE PART" PIAGGIO APE 220 TM703 1997>2016 -438014 More informationQuantity required : 1 |
||||||
|
5 |
149323 - BOUTON More informationQuantity required : 3 |
||||||
|
6 |
157227 - JOINT More informationQuantity required : 3 |
||||||
|
7 |
414424 - TUBE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/6/0/1/7/img/66017.jpg)
8 |
257134 - COLLIER More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/5/3/img/117453.jpg)
9 |
AIR FILTER INTAKE HOSE "PIAGGIO GENUINE PART" APE TM703 -220403 More informationQuantity required : 1 |
||||||
|
10 |
2140165 - SUPPORT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/0/img/65640.jpg)
11 |
031089 - BOULON S03108900 More informationQuantity required : 2 |
||||||
|
12 |
RONDELLE |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
13 |
003056 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/1/6/img/65416.jpg)
14 |
016406 - RONDELLE S01640600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/6/1/img/65461.jpg)
15 |
020106 - ECROU S02010600 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/3/8/img/65638.jpg)
16 |
031087 - ECROU S03108700 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/4/1/img/65641.jpg)
17 |
031090 - VIS More informationQuantity required : 1 |
||||||
|
18 |
257942 - TUYAU More informationQuantity required : 1 |
||||||
|
19 |
217149 - CIRCLIPS More informationQuantity required : 1 |
||||||
|
20 |
162314 - MANCHON More informationQuantity required : 2 |
||||||
|
21 |
162312 - TUYAU RACCORD More informationQuantity required : 1 |
