Vehicle Exploded View - PIAGGIO VU APE TM ESSENCE 0 Ape TM 703 2008-2015
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/maker/piaggiovu.svg)

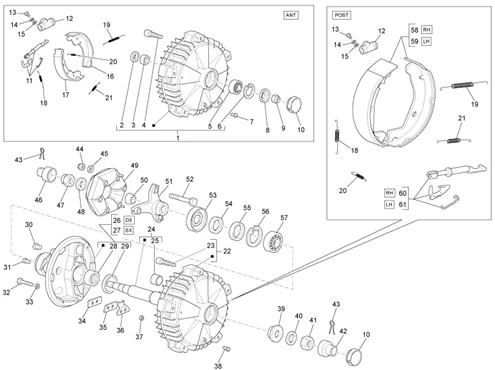

Transmisisons : 05.02 MACHOIRE
/p2r-public-documents.s3.eu-west-3.amazonaws.com/eclate/327/Ape_TM_703_2008-2015_05.02.PNG)
1 |
2461985 - TAMBOUR FREIN AVT More informationQuantity required : 1 |
||||||
|
2 |
116037 - BAGUE More informationQuantity required : 1 |
||||||
|
3 |
243804 - BAGUE More informationQuantity required : 1 |
||||||
|
4 |
615988 - GOUJON More informationQuantity required : 5 |
||||||
|
5 |
ROULEMENT |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/8/2/5/img/63825.jpg)
6 |
CIRCLIPS "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -006647 More informationQuantity required : 1 |
||||||
|
7 |
138241 - VIS More informationQuantity required : 1 |
||||||
|
8 |
177468 - RONDELLE More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/6/6/3/img/65663.jpg)
9 |
NUT - FOR FRONT WHEEL HUB "PIAGGIO GENUINE PART" APE -074521 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/4/7/2/img/110472.jpg)
10 |
566122 - BOUCHON More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/5/3/img/116453.jpg)
11 |
644326 - REGLAGE AUT AR AVT G More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/2/1/1/3/8/img/121138.jpg)
12 |
REAR BRAKE CYLINDER "PIAGGIO GENUINE PART" APE -2451932 More informationQuantity required : 3 |
||||||
|
13 |
030052 - VIS S03005200 More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/7/img/63777.jpg)
14 |
003056 - RONDELLE More informationQuantity required : 12 |
||||||
|
15 |
012536 - RONDELLE More informationQuantity required : 12 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/3/5/1/img/117351.jpg)
16 |
568373 - MACHOIR DE FREIN AVANT More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/4/2/8/img/117428.jpg)
17 |
REAR/FRONT SHOE BRAKE "PIAGGIO GENUINE PART" APE, CARGO (SOLD PER UNIT) -568372 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/3/9/img/111439.jpg)
18 |
178808 - RESSORT More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/7/8/img/111378.jpg)
19 |
BRAKE SHOE SPRING "PIAGGIO GENUINE PART" APE -245038 More informationQuantity required : 3 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/5/8/7/img/111587.jpg)
20 |
225549 - RESSORT More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/6/3/7/img/111637.jpg)
21 |
BRAKE SHOE SPRING "PIAGGIO GENUINE PART" APE -178750 More informationQuantity required : 3 |
||||||
|
22 |
56567R - TAMBOUR More informationQuantity required : 2 |
||||||
|
23 |
615988 - GOUJON More informationQuantity required : 5 |
||||||
|
24 |
1781856 - AXE ROUE AR 178185 More informationQuantity required : 2 |
||||||
|
25 |
178187 - BAGUE More informationQuantity required : 1 |
||||||
|
26 |
2441455 - MOYEU AR D More informationQuantity required : 1 |
||||||
|
27 |
2441445 - MOYEU AR G More informationQuantity required : 1 |
||||||
|
28 |
177431 - DOUILLE More informationQuantity required : 1 |
||||||
|
29 |
177432 - BAGUE More informationQuantity required : 1 |
||||||
|
30 |
178838 - BOUCHON More informationQuantity required : 2 |
||||||
|
31 |
178811 - PIVOT More informationQuantity required : 4 |
||||||
|
32 |
030078 - VIS More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/7/9/img/63779.jpg)
33 |
003058 - RONDELLE S00305800 More informationQuantity required : 4 |
||||||
|
34 |
075765 - PLAQUETTE More informationQuantity required : 2 |
||||||
|
35 |
105498 - TAQUET More informationQuantity required : 2 |
||||||
|
36 |
244159 - PLAQUETTE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/5/5/img/65455.jpg)
37 |
NUT - M8 "PIAGGIO GENUINE PART" COMMON TO ALL THE RANGE -020008- More informationQuantity required : 4 |
||||||
|
38 |
138241 - VIS More informationQuantity required : 2 |
||||||
|
39 |
178193 - CONE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/1/0/8/img/111108.jpg)
40 |
078186 - RONDELLE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/3/4/2/img/111342.jpg)
41 |
021120 - ECROU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/8/7/img/111487.jpg)
42 |
175493 - ENTRETOISE More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/0/9/3/2/img/110932.jpg)
43 |
012790 - GOUPILLE More informationQuantity required : 4 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/9/6/5/img/65965.jpg)
44 |
231370 - ECROU More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/5/4/2/3/img/65423.jpg)
45 |
016626 - RONDELLE More informationQuantity required : 6 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/1/4/6/1/img/111461.jpg)
46 |
177559 - CAPUCHON More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/2/1/3/1/img/112131.jpg)
47 |
NUT - FOR TRANSMISSION SILENTBLOC FASTENING "PIAGGIO GENUINE PART" APE -021118 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/6/3/7/8/1/img/63781.jpg)
48 |
TRANSMISSION WASHER (30X19X3) "PIAGGIO GENUINE PART" APE -003068 More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/4/3/img/108543.jpg)
49 |
2283020001 - JOINT More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/5/3/4/2/img/115342.jpg)
50 |
CONE FOR REAR BRAKE DRUM "PIAGGIO GENUINE PART" APE -128633 More informationQuantity required : 2 |
||||||
|
51 |
2682184 - MOYEU More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/0/8/5/4/4/img/108544.jpg)
52 |
018572 - VIS More informationQuantity required : 6 |
||||||
|
53 |
176190 - CUVETTE More informationQuantity required : 2 |
||||||
|
54 |
1370513 - BAGUE More informationQuantity required : 2 |
||||||
|
55 |
196302 - BAGUE ETANCHEITEE More informationQuantity required : 2 |
||||||
|
56 |
006650 - CIRCLIPS S00665000 More informationQuantity required : 2 |
||||||
|
57 |
REAR WHEEL HUB BEARING "PIAGGIO GENUINE PART" APE -56576R More informationQuantity required : 2 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/9/9/3/img/117993.jpg)
58 |
REAR SHOE BRAKE DROITE "PIAGGIO GENUINE PART" APE TM703 -568377 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/7/2/7/6/img/117276.jpg)
59 |
REAR SHOE BRAKE GAUCHE "PIAGGIO GENUINE PART" APE TM703 -568379 More informationQuantity required : 1 |
||||||
:format(webp)/p2r-public-documents.s3.eu-west-3.amazonaws.com/ref/1/1/6/4/5/2/img/116452.jpg)
60 |
644327 - REGLAGE AUT AR G More informationQuantity required : 1 |
||||||
|
61 |
644326 - REGLAGE AUT AR AVT G More informationQuantity required : 1 |
