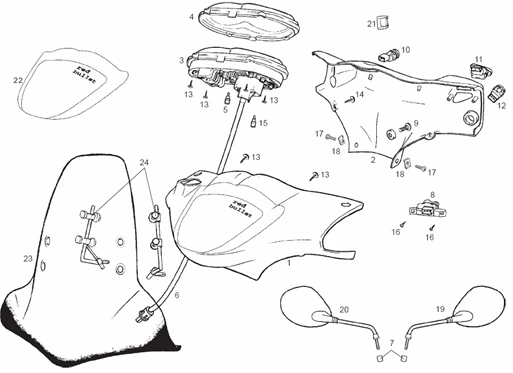

Vehicle Exploded View - DERBI ATLANTIS 50 Atlantis 50 E2 2003 (EMEA NAFTA)

	P2R reference	194030
	Maker reference	00G023194915

00G023194915 - CACHE DIRECTION AV.

	P2R reference	193993
	Maker reference	00G01012523

00G01012523 - CACHE DIRECTION AR.

	P2R reference	187440
	Maker reference	00G01011523

00G01011523 - CACHE DIRECTION AR.

	P2R reference	194031
	Maker reference	00G01633521

00G01633521 - ENSEMBLE COMPTEUR KM/H

	P2R reference	64004
	Maker reference	00G01604071

00G01604071 - GLACE COMPTEUR KILOMETRIQUE

	P2R reference	64003
	Maker reference	00G01602581

00G01602581 - R-PORTE-LAMPES

	P2R reference	64005
	Maker reference	00G01605021

TRANSMISSION SPEEDOMETER CABLE "PIAGGIO GENUINE PART" 50 DIESIS -00G01605021-

	P2R reference	63892
	Maker reference	00D04900581

00D04900581 - DOUILLE SUPPLEMENTAIRE GOUJON

	P2R reference	77804
	Maker reference	294723

TURN SIGNAL SWITCH "PIAGGIO GENUINE PART" 50-125 VESPA LX, VESPA-S, 125 VESPA GTS -294723-

	P2R reference	63992
	Maker reference	00G01503701

SCREW - FOR FAIRINGS FASTENING "PIAGGIO GENUINE PARTS" GILERA 50 SMT, RCR/APRILIA 50 SX, RX 2006>2010 -00G01503701-

	P2R reference	187394
	Maker reference	00G02101631

00G02101631 - ENSEMBLE COMMUTATEUR DEMARRAGE

	P2R reference	64032
	Maker reference	00G02303171

00G02303171 - ENSEMBLE COMMUTATEUR PHARES

	P2R reference	67177
	Maker reference	58058R

HORN SWITCH "PIAGGIO GENUINE PART" PIAGGIO 50 TYPHOON, NRG, FFY, ZIP, 125-250-500 X-EVO, X8, X9, BEVERLY/GILERA 50 STALKER, RUNNER/APRILIA 125-250-400-500 SCARABEO-LIGHT . LEFT -58058R--

	P2R reference	63676
	Maker reference	000110314015

00011031401 - VIS TARAUD 3,6X14 NOIR CL89H

	P2R reference	63677
	Maker reference	000110318015

00011031801 - VIS TARAUD 3,6X18 NOIR CL89H

	P2R reference	64002
	Maker reference	00G01601581

00G01601581 - R-PORTE-LAMPES

	P2R reference	63661
	Maker reference	000080512005

00008051200 - VIS 5X12

	P2R reference	64119
	Maker reference	00G04401462

NUT - FOR SEAT FASTENING "PIAGGIO GENUINE PART" GILERA 50 SMT, RCR/APRILIA 50 SX, RX, RS -00G04401462-

	P2R reference	64123
	Maker reference	00G04613921

MIRROR- LEFT - F1 TYPE - "PIAGGIO GENUINE PART" GILERA 50 SMT RACING -00G04613921-

	P2R reference	64028
	Maker reference	00G02212671

MIRROR- RIGHT "F1 TYPE" - "PIAGGIO GENUINE PART" GILERA 50 SMT RACING -00G02212671

	P2R reference	193995
	Maker reference	00G02301161

00G02301161 - ENSEMBLE COMMUTATEUR PHARES

	P2R reference	194032
	Maker reference	00G01509251

00G01509251 - ADHESIF

	P2R reference	63991
	Maker reference	00G01502751

00G01502751 - PARE-BRISE AVANT

	P2R reference
	Maker reference	00G05203611

APPUI PARE-BRISE
